Brand: Panduit
|
SKU:
88703
Panduit ABMM-A-D | ABMM-A-D Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK500
Regular price
$292.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABMM-A-D | ABMM-A-D Cable Tie Mount, White, ABS, Rubber Adh...
Regular price
$292.45
Unit price
Description
Description

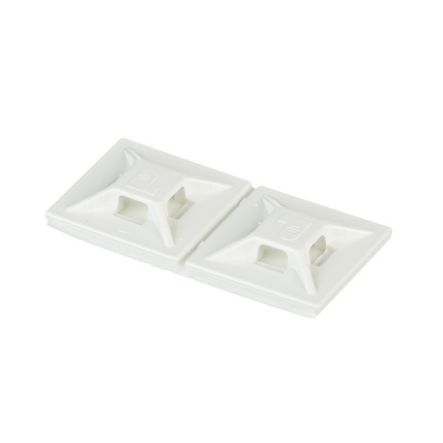

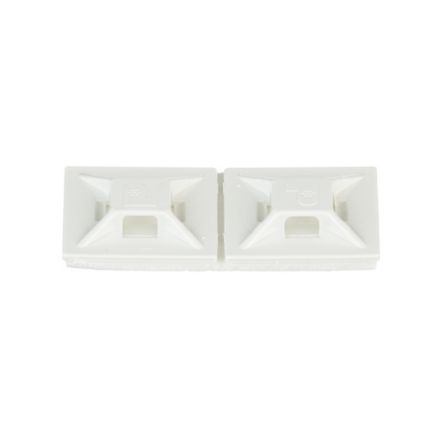

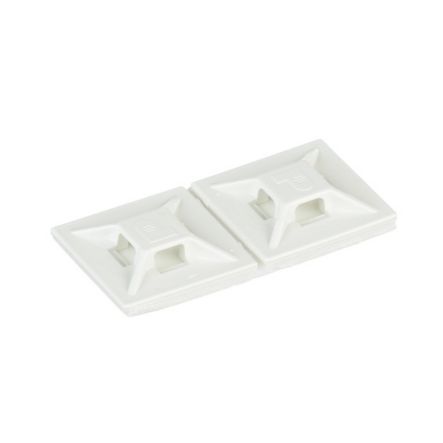

Panduit ABMM-A-D | ABMM-A-D Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK500
Panduit’s ABMM-A-D rubber-based adhesive back cable tie mounts have been designed for fast installation and long-term performance. These mounts can be used with miniature and intermediate cables ties. Made of ABS plastic and intended for use in indoor environments. They are 0.75" x 0.75" (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 500.
Panduit - ABMM-A-D - Features
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABMM-A-D - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABMM-A-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABMM-A-D |
| Item Description | ABMM-A-D Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK500 |
| Application | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.18 |
| Overall Height (mm) | 4.6 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.1 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.136 |
| Static Load Capacity (lb) | 0.3 |
| For Use With | Miniature, Intermediate Cross-Section Ties |
Panduit - ABMM-A-D - Package Information
| UPC | 07498358501 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0528 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.5282 |
Panduit - ABMM-A-D - Videos
| Video 1 | Click to View |
|---|
