Panduit ABMM-AT-D | Cable Tie Mount
Regular price
$335.67
Unit price
Brand: Panduit
|
SKU:
PAN-ABMM-AT-D
Regular price
$335.67
Unit price
Description
Description

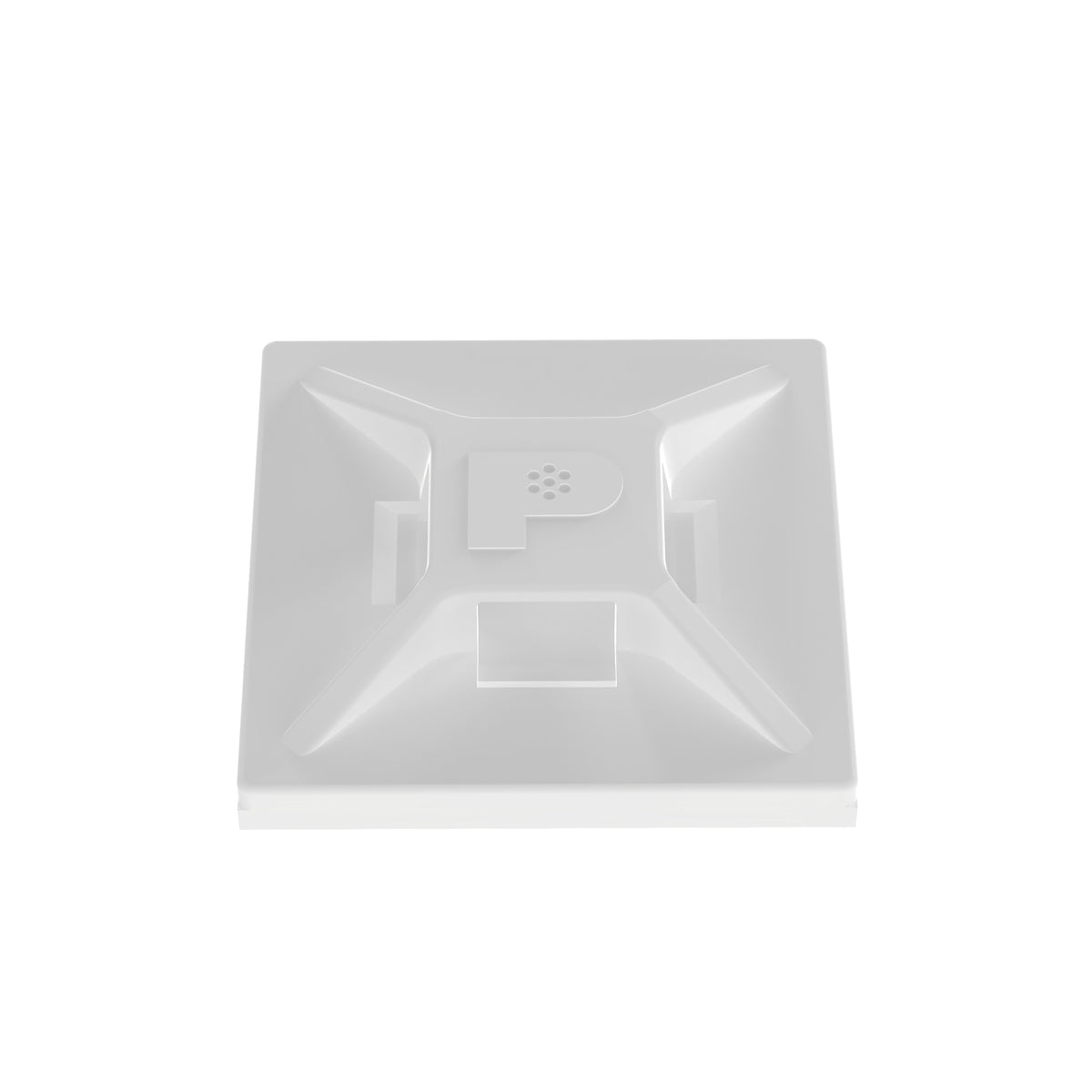

Panduit ABMM-AT-D | Cable Tie Mount
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cable Tie Mount, 4-Way Tie Entry, Acrylic Adhesive Tape Mount, 0.135 in Maximum Tie Width, 3/4 in Base Length, 3/4 in Base Width, ABS, White
Panduit - ABMM-AT-D - Features
- Quick and easy deployment in high density applications and provide efficient utilization of rack space and design flexibility
- Modified method A, pair flipped
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber-based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature and Intermediate cable ties
Specifications
Specifications
Panduit - ABMM-AT-D - Specifications
| Application | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
|---|---|
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 179.6 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20.2 |
| Mount Method | Acrylic Adhesive Tape |
| Overall Height (In.) | 0.18 |
| Overall Height (mm) | 4.6 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.1 |
| UPC | 07498358495 |
