Brand: Panduit
|
SKU:
ABMM-D

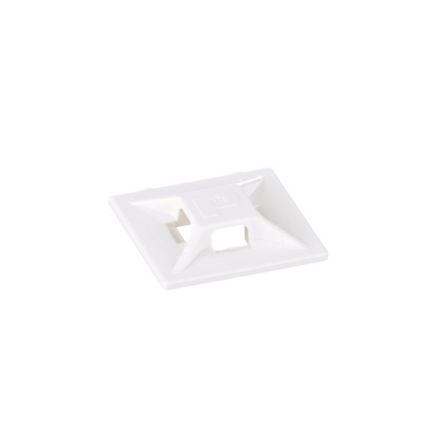

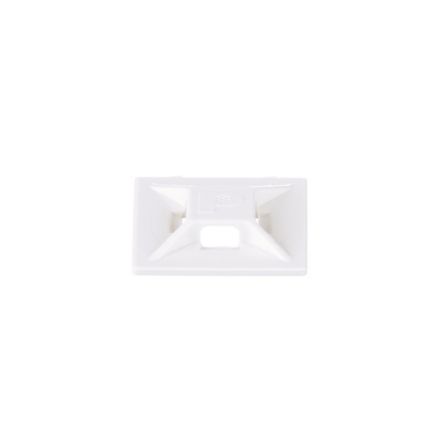

Panduit ABMM-D | ABMM-D Cable Tie Mount, White, ABS, Self-Adh., 0.75x0.75", PK500
Regular price
$270.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABMM-D | ABMM-D Cable Tie Mount, White, ABS, Self-Adh., 0.7...
Regular price
$270.97
Unit price
Description
Description
Panduit ABMM-D | ABMM-D Cable Tie Mount, White, ABS, Self-Adh., 0.75x0.75", PK500

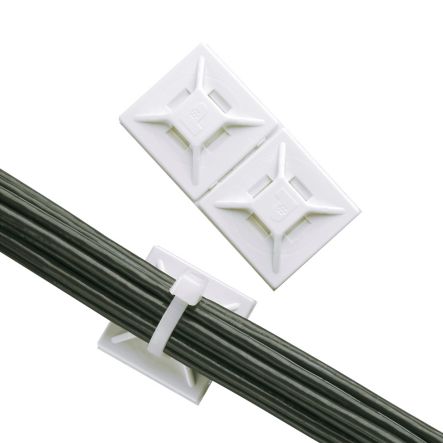

Panduit’s ABMM-D cable tie mounts provide a solution for miniature and intermediate cable ties. They are 0.75" x 0.75" (19.1mm x 19.1mm), made of ABS plastic, white in color and come in packages of 500. These mounts do require a user-supplied adhesive (adhesive is not included with these – for comprehensive adhesive-backed mounts, reference ABMM-A, ABMM-AT or ABMM-AV version).
Specifications
Specifications
Panduit - ABMM-D - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABMM-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABMM-D |
| Item Description | ABMM-D Cable Tie Mount, White, ABS, Self-Adh., 0.75x0.75", PK500 |
| Application | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Self-Adhesive |
| Overall Height (mm) | 3.6 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.1 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate Cross-Section Ties |
Panduit - ABMM-D - Package Information
| UPC | 07498358516 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0528 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.5282 |
