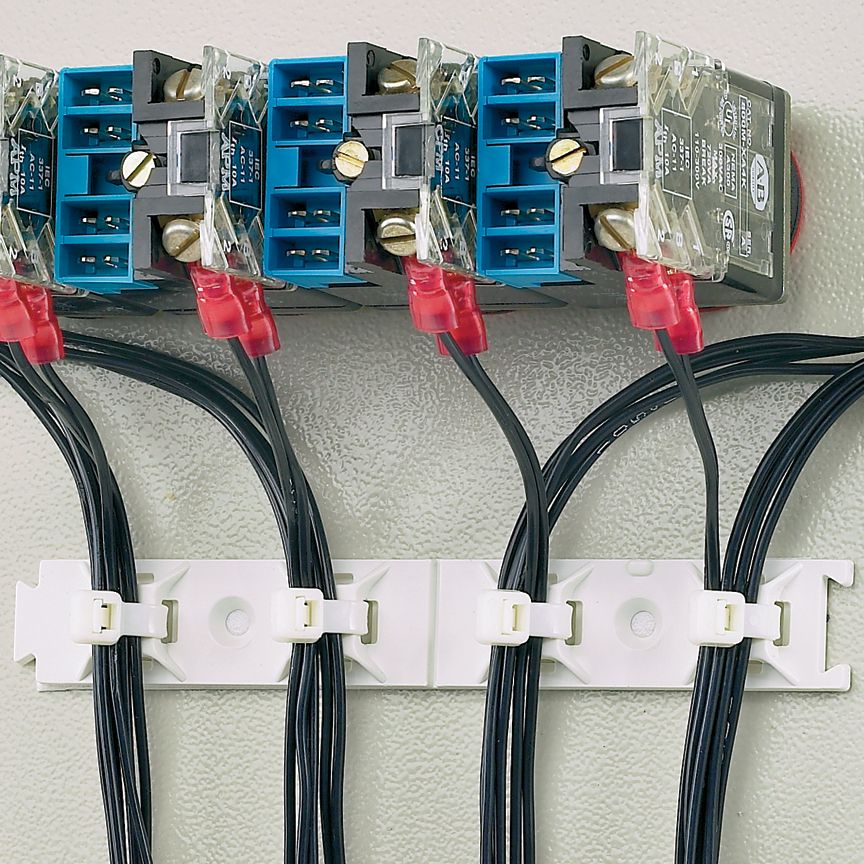

Panduit ABMQS-A-Q | Cable Tie Mount | UPC - 07498334255
Regular price
$7.59
Unit price
Brand: Panduit
|
SKU:
989470
Regular price
$7.59
Unit price
Description
Description
Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.19 in Maximum Tie Width, 5.1 in Base Length, 3/4 in Base Width, ABS, White
Features + Benefits
- Dovetail connection system provides alignment and a joining method to expand routing capabilities
- V-groove allows for easy separation into two mounts with two bridges each for separate applications
- 4-way cable tie bridges allow cable bundles to be secured perpendicular to the mount for even spacing or inline to secure a bundle in multiple places
- Large adhesive surface area provides long term reliability and keeps product in place despite heavy load or high stress
- Multiple cable tie bridges on one mount speeds installation of cable bundles by reducing the number of mounts applied
- For use with miniature, intermediate and standard cable ties
Panduit ABMQS-A-Q Key Specs
| Application | (1) Multiple Cable Tie Bridges on One Mount (2) V-Groove Allows for Easy Separation into Two Mounts with Two Bridges Each for Separate Applications (3) 4-Way Cable Tie Bridges |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120.2 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20.2 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.29 |
| Overall Height (mm) | 7.4 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 5.13 |
| Overall Width (mm) | 130 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.8 |
| Static Load Capacity (lb) | 1.85 |
Panduit ABMQS-A-Q Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - ABMQS-A-Q Prduct Page | Download and View |
| Part Drawings | Part Drawing - PDF - ABMQ_RR | Download and View |
| Product Bulletins | Product Bulletin - SA-ELCB05 ABMQ(2) | Download and View |
