Brand: Panduit
|
SKU:
119727
Panduit ABMS-A-D | ABMS-A-D Cable Tie Mount, Natural, PA 6.6, Rubber Adh., 1.13x1.13", PK500
Regular price
$372.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABMS-A-D | ABMS-A-D Cable Tie Mount, Natural, PA 6.6, Rubbe...
Regular price
$372.54
Unit price
Description
Description
Panduit ABMS-A-D | ABMS-A-D Cable Tie Mount, Natural, PA 6.6, Rubber Adh., 1.13x1.13", PK500

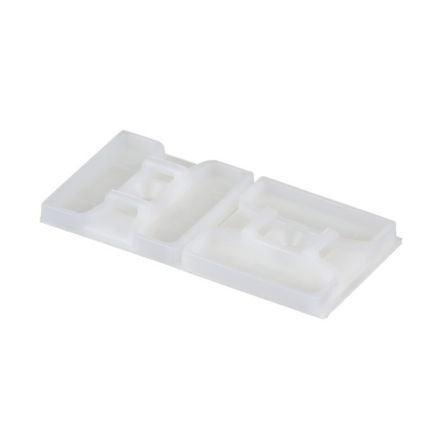

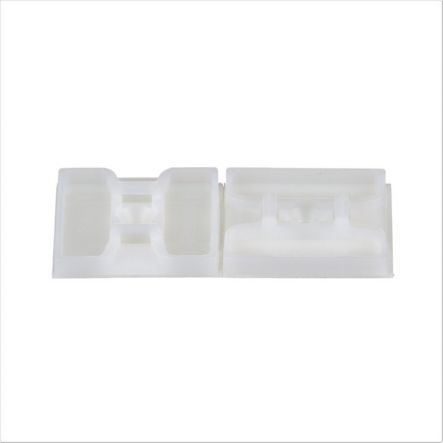

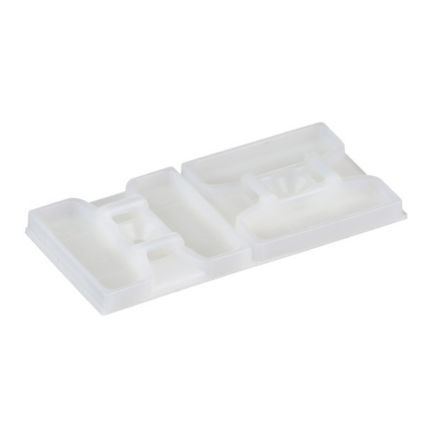

Panduit’s ABMS-A-D 2-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1.1" x 1.1" (27.9mm x 27.9mm), supplied in strips of 2, are white in color and come in packages of 500
Panduit - ABMS-A-D - Features
- 2-Way Cable Tie Entry Mount
- Cable ties may be inersted from either side of mount
- Choose adhesive backed or screw installed mounts
Specifications
Specifications
Panduit - ABMS-A-D - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABMS-A-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABMS-A-D |
| Item Description | ABMS-A-D Cable Tie Mount, Natural, PA 6.6, Rubber Adh., 1.13x1.13", PK500 |
| Application | 2 Way Cable Tie Mount, Used With Miniature, Intermediate, and Standard Cable Ties |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.17 |
| Overall Height (mm) | 4.3 |
| Overall Length (In.) | 1.13 |
| Overall Length (mm) | 28.7 |
| Overall Width (In.) | 1.13 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.272 |
| Static Load Capacity (lb) | 0.6 |
| For Use With | Miniature, Intermediate Cross-Section Ties |
Panduit - ABMS-A-D - Package Information
| UPC | 07498358004 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.2163 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 2.1626 |
