Panduit ACG24K | Structured Ground Armored Cable Grd Kit, 6 AWG, PK1
Description
Description
Achieve reliable grounding with our armored cable kit. The black cover conceals HTAP connections, providing a neat finish. The 24" jumper is terminated on both ends for quick setup.

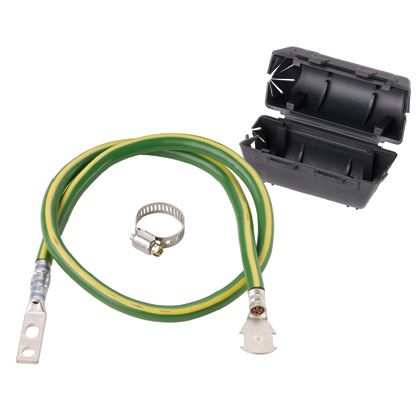

Crimped jumper wire assembly; 24" (609.6mm) length; LCC6-14, #10 mechanical clamp; provided with two each #12-24, M6 slotted hex head zinc-plated thread-forming screws, and black polypropylene terminal cover.
Panduit StructuredGround Armored Cable Grounding Kit, For Use With: Up to 0.84 in Dia Unjacketed Armored Cable, Aluminum/Steel, Green/Yellow
Panduit - ACG24K - Features
- Provides a secure bond to the armor sheath on indoor and indoor outdoor fiber optic cables at both cassette and enclosure ends
- Worm gear design evenly distributes forces across the armor
- Made from steel and aluminum material is compatible with common armor for long term reliability
- Black insulating cover protects and hides the connection for an aesthetically pleasing work area
- Complies with industry requirements ensuring a high level of reliability and safety
- Factory terminated on one end with LCC6 2-hole copper compression lug and the other end with grounding terminal
Specifications
Specifications
Panduit - ACG24K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ACG24K |
| Component | Grounding Kits |
| Connection Type | Compression |
| Material Rating | Copper |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 24 |
| Overall Length (mm) | 609.6 |
| Conductor Gauge (AWG) | 6 |
| Application | Armored Cable |
| Product Type | Armored Cable Grounding Kit |
| Part Features | Provides a secure bond to the armor sheath on indoor and indoor/outdoor fiber optic cables at both cassette and enclosure ends, Worm-gear design evenly distributes forces across the armor, is compatible with common armor for long term reliability. |
| UPC | 07498311089 |
Panduit - ACG24K - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
