Brand: Panduit
|
SKU:
1009948
Panduit AFR4JB2SIW | Surface Raceway | UPC - 61305644904
Regular price
$41.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit AFR4JB2SIW | Surface Raceway | UPC - 61305644904
Regular price
$41.81
Unit price
Description
Description

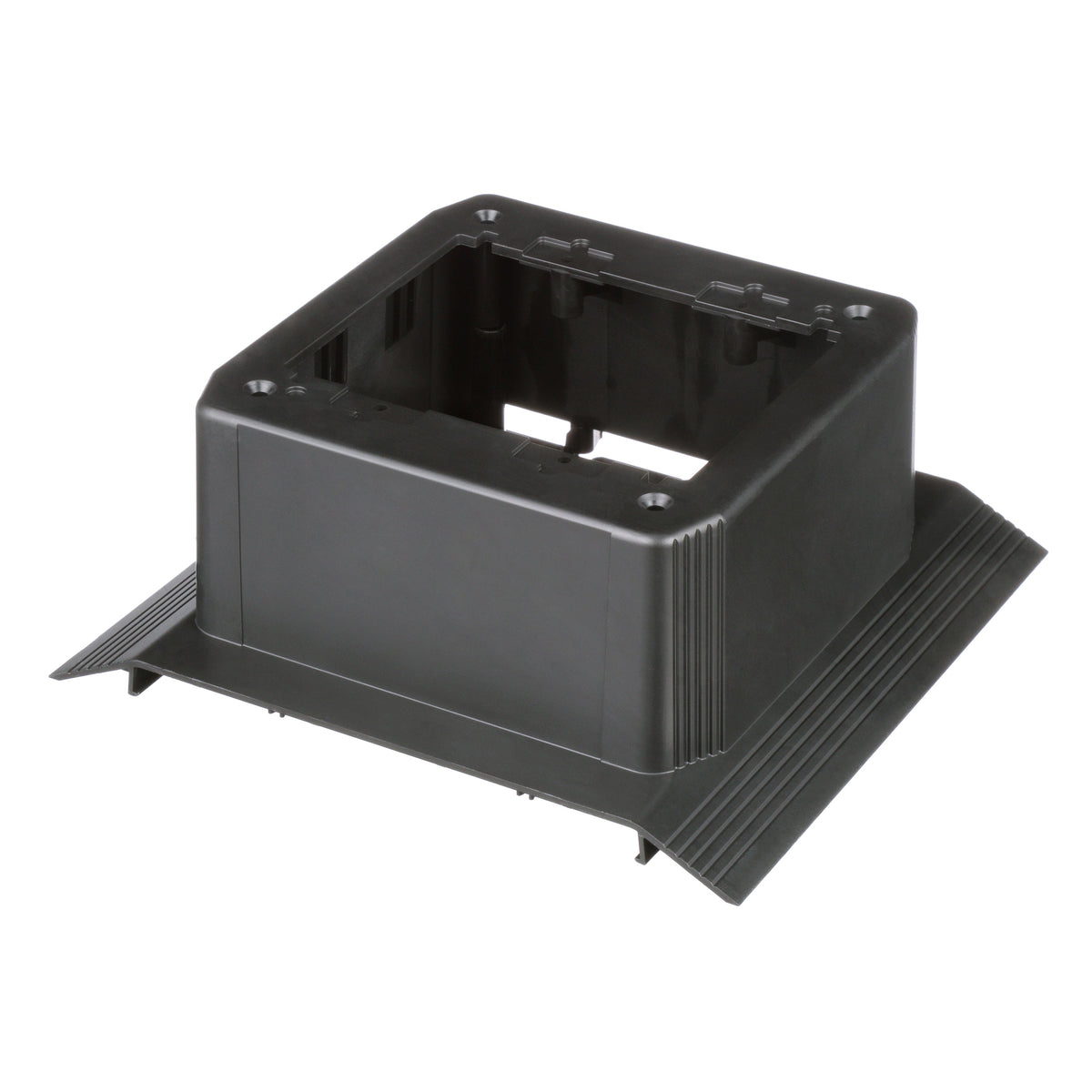

Panduit Pan-Way Snap Together Junction Box, 2-Piece, For Use With: Panduit PanNet and NetKey Communication System and 4-Channel 2-Gang Above Floor Power Rated Raceway, ABS, Off-White
Features + Benefits
Panduit AFR4JB2SIW Key Specs
| Raceway Type | Power Rated |
| Fitting Type | Junction Box |
| Material | ABS |
| Color | Off-White |
| Overall Length (In.) | 6.94 |
| Overall Length (mm) | 176.1 |
| Overall Width (In.) | 6.5 |
| Overall Width (mm) | 165.1 |
| Overall Height (In.) | 2.74 |
| Overall Height (mm) | 69.7 |
| Internal Area (in²) | 45.11 |
| Internal Area (mm²) | 29074.1 |
| For Use With | Panduit Pan-Net and Net-Key Communication Systems |
| Resistance Properties | Tamper-Resistant |
| Standards Met | UL94V-0 and E116129, UL-5A 600VAC CSA C22.2 No. 62.1-03 600V, RoHS compliant |
| Includes | 1 Cover, 1 Divider, 1 Base, 4 HEX Washer Head Concrete Screw and 4 Bination Head Screws |
| Sub Brand | Pan-Way |
| Product Type | Surface Raceway |
| Application | Provides solutions for routing low voltage, fiber optic and/or power cabling over floors. |
Panduit AFR4JB2SIW Data Sheets
| Part Drawings | Above Floor Raceway 4-Channel Double Gang Junction Box | Download and View |
| Specification Sheets | Pan-Way Above Floor Raceway System | Download and View |
| Selection Guides | Audio Video Product Selection Guide | Download and View |
| Specification Sheets | Pan-Way Above Floor Raceway System | Download and View |
| Installation Documents | Above Floor Raceway 4-Channel Standard Product | Download and View |
| Installation Documents | Goulotte de câblage à quatre voies au-dessus du plancher - Produit standard | Download and View |
