Brand: Panduit
|
SKU:
10083508
Panduit ARC.68-A-C | Clincher ARC.68-A-C Adjustable Clamp, White, PP, Rubber Adh., 1x1", PK100
Regular price
$105.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ARC.68-A-C | Clincher ARC.68-A-C Adjustable Clamp, White, P...
Regular price
$105.99
Unit price
Description
Description

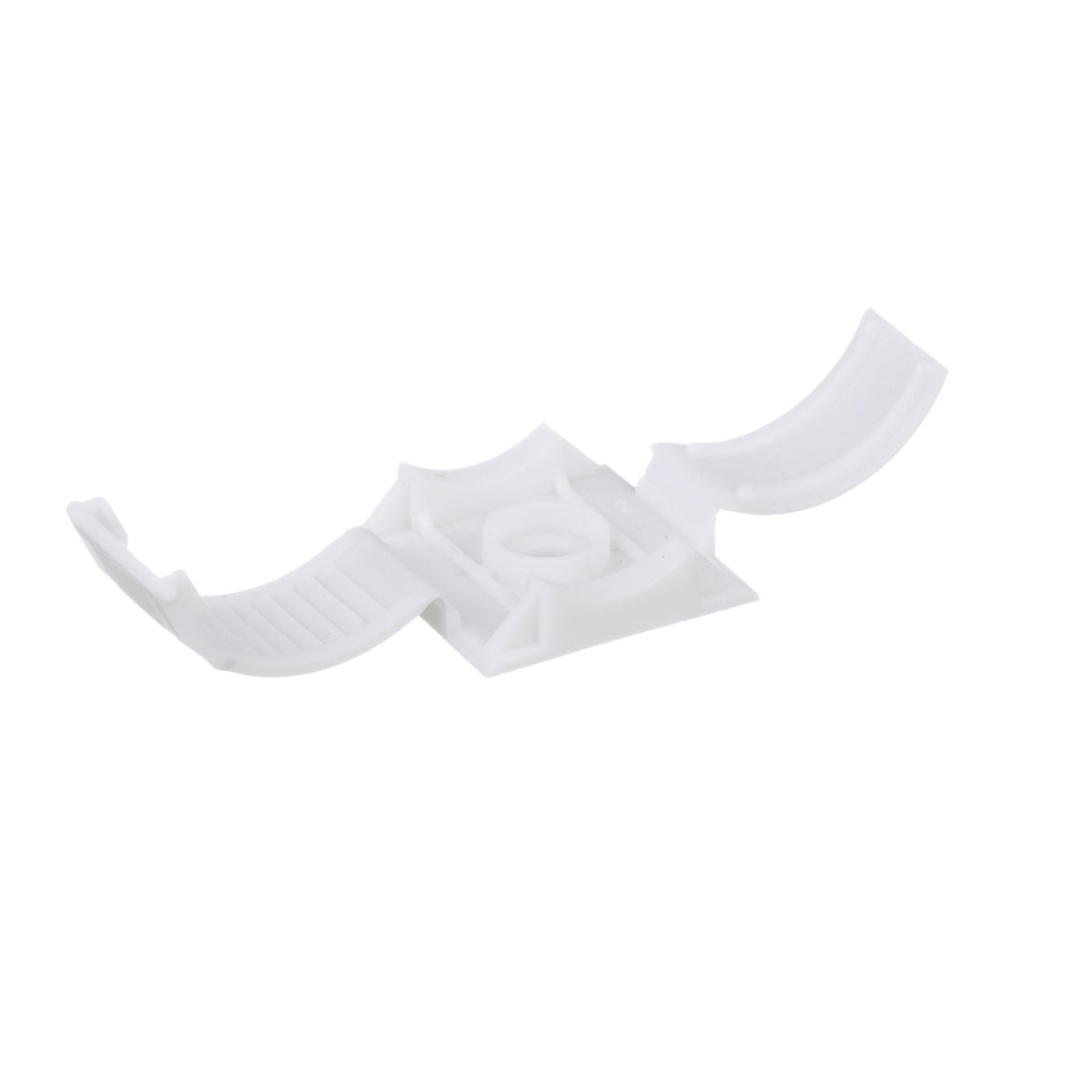

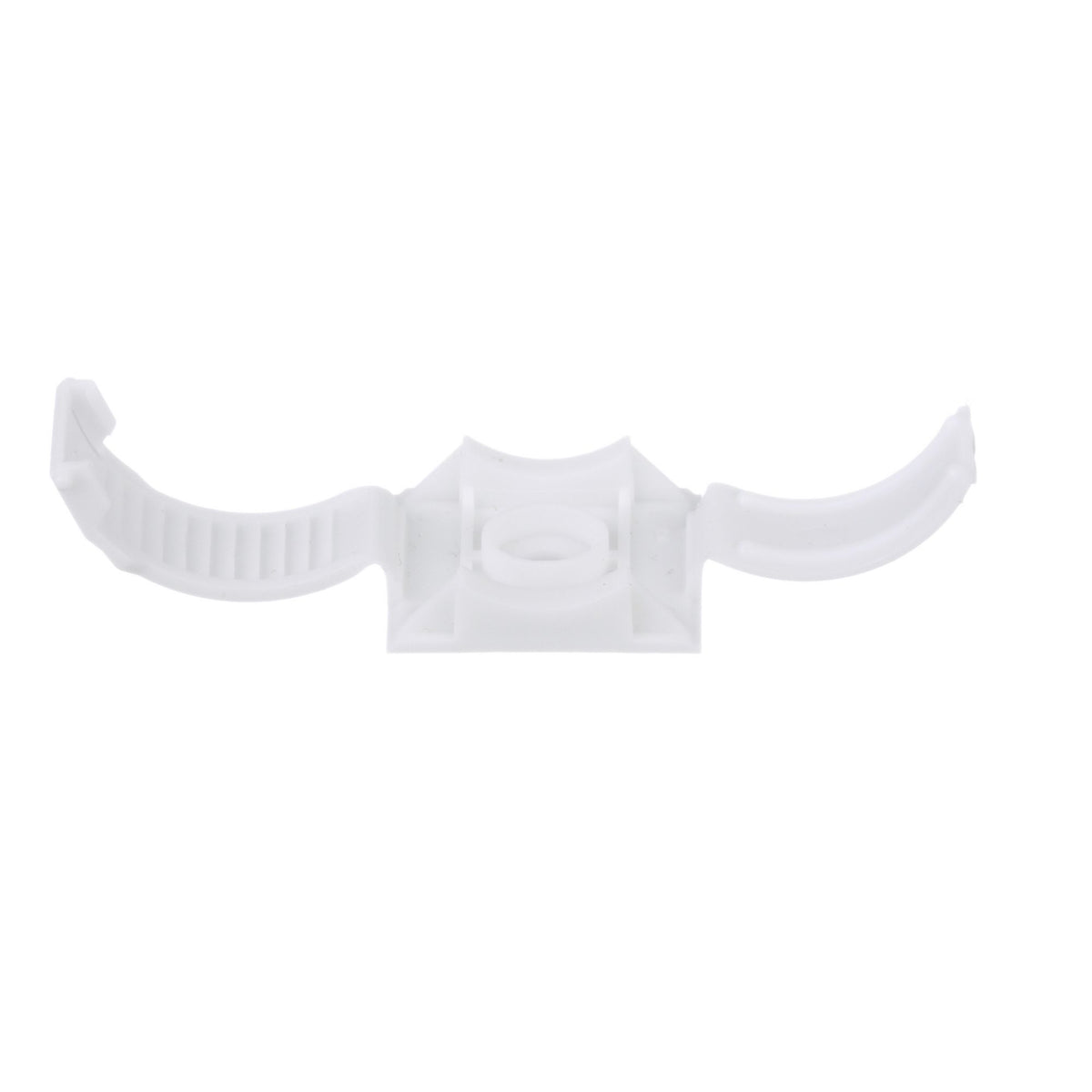

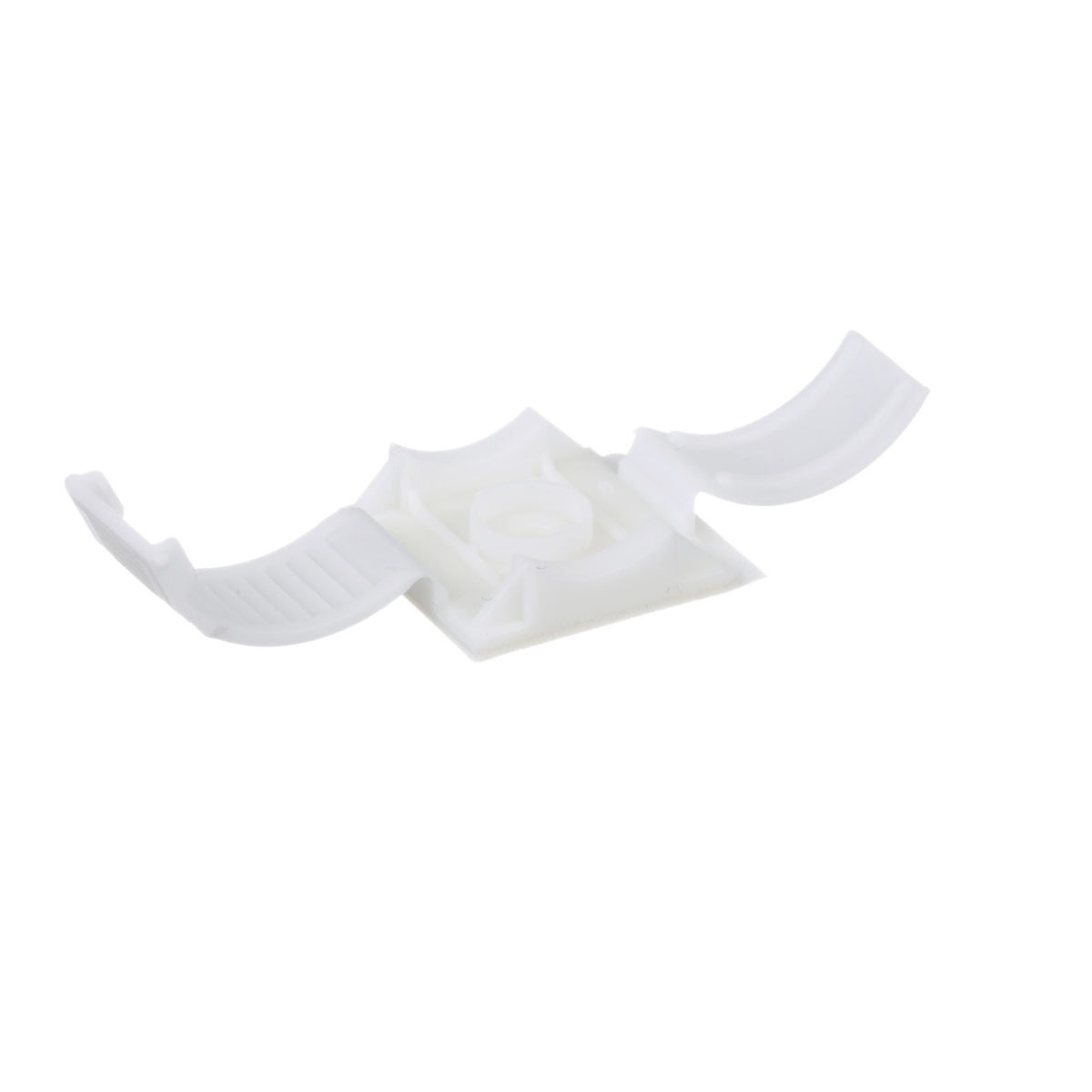

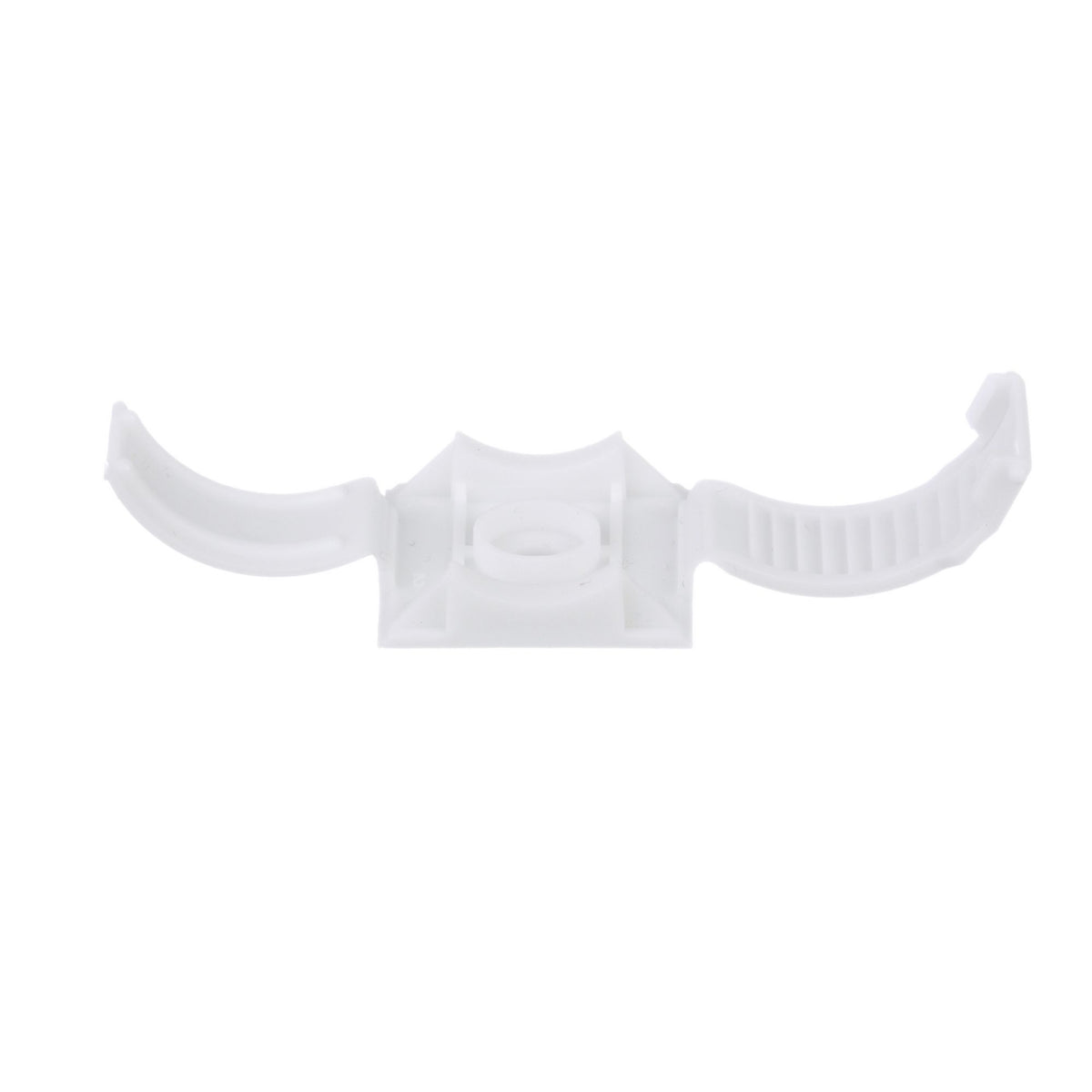

Panduit ARC.68-A-C | Clincher ARC.68-A-C Adjustable Clamp, White, PP, Rubber Adh., 1x1", PK100
Panduit ARC.68-A-C Adjustable Releasable Clamps are designed to contain a range of cable bundle diameters. The latch can then be released after the initial installation to provide access to the cable bundles. For use in indoor environments and with bundles up to 0.69" (17.5mm) in diameter. Made of Polypropylene, are natural in color and come in packages of 100.
Panduit ARC.68-A-C | CLAMP | ADJ. REL. CLAMP, ADH., .69 feet
Specifications
Specifications
Panduit - ARC.68-A-C - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - ARC.68-A-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ARC.68-A-C |
| Item Description | Clincher ARC.68-A-C Adjustable Clamp, White, PP, Rubber Adh., 1x1", PK100 |
| Application | For securing wires and cables via range-taking clamping ability |
| Product Type | Adjustable and releasable clamp |
| Color | White |
| Environment | Indoor |
| Material | Polypropylene |
| Maximum Bundle Diameter (In.) | 0.68 |
| Maximum Bundle Diameter (mm) | 17.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Diameter (In.) | 0.15 |
| Mounting Hole Diameter (mm) | 3.8 |
| Overall Height (In.) | 0.41 |
| Overall Height (mm) | 10.4 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Resistance Properties | Flame Resistance(UL94HB) |
| Standards Met | UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.2 |
| Static Load Capacity (lb) | 0.5 |
| Sub Brand | Clincher |
Panduit - ARC.68-A-C - Package Information
| UPC | 07498358537 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1320 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.3201 |
Panduit - ARC.68-A-C - Videos
| Video 1 | Click to View |
|---|
