Brand: Panduit
|
SKU:
670875

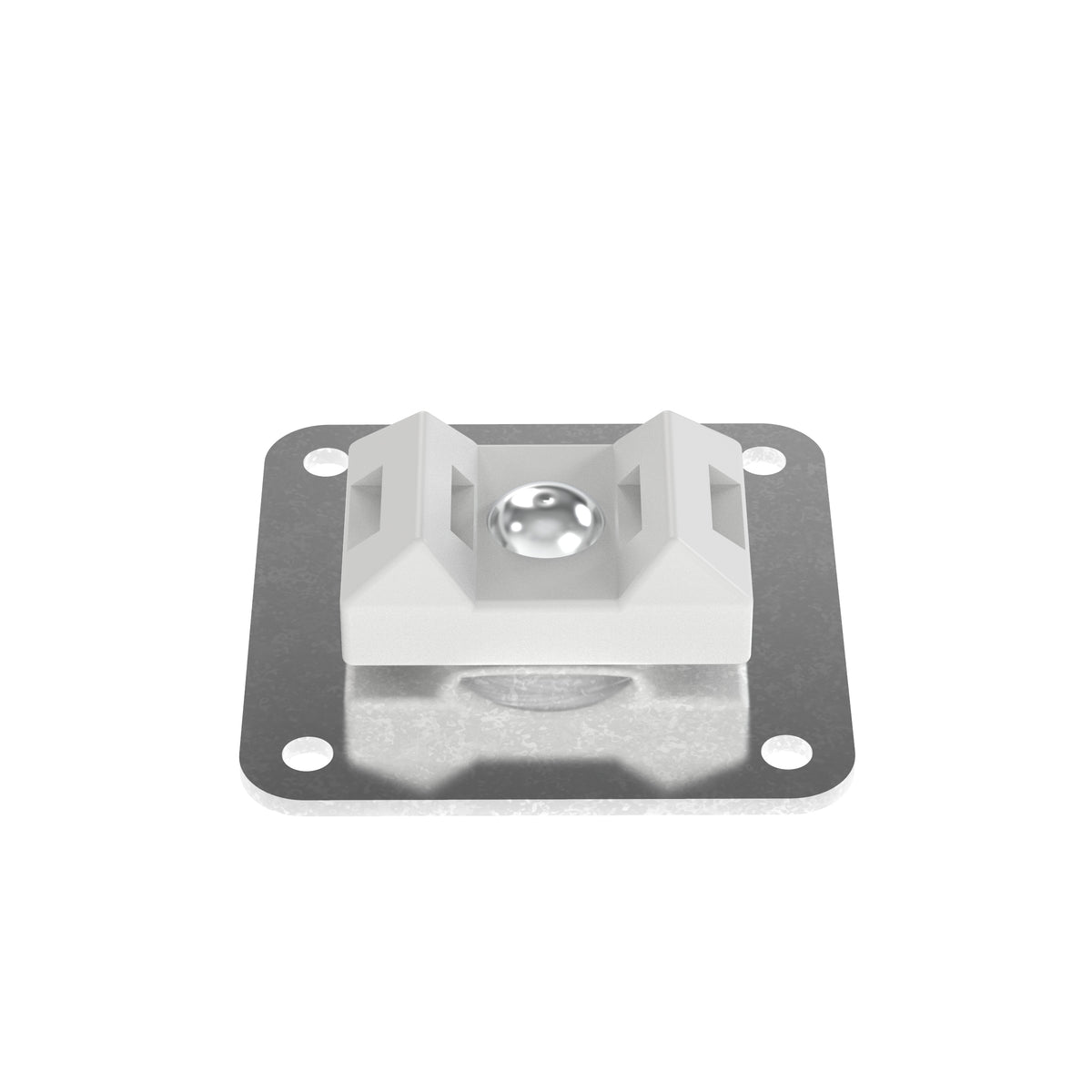

Panduit ASMS-A-X | Cable Tie Mount, Natural, PA6.6, Two-Part Epoxy, 1.125x1.125", PK10
Regular price
$9.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ASMS-A-X | Cable Tie Mount, Natural, PA6.6, Two-Part Epoxy,...
Regular price
$9.74
Unit price
Description
Description
Panduit ASMS-A-X | Cable Tie Mount, Natural, PA6.6, Two-Part Epoxy, 1.125x1.125", PK10
Our epoxy swivel mount fits various cable tie sizes, ensuring proper cable orientation and strong adhesion, ideal for organizing cable in control panels and other indoor setups.
Panduit Cable Tie Swivel Mount, EMA Epoxy Mount, 4.8 mm Maximum Tie Width, 1.13 in Base Length, 1.13 in Base Width, Aluminum/Nylon, Natural
Panduit - ASMS-A-X - Features
- Swivels 360 deg to assure proper orientation with harness
- Four inspection holes to check adhesive coverage
- Polyamide (PA) insulation
- Aluminum base/nylon mount
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - ASMS-A-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ASMS-A-X |
| Product Type | Cable Tie Mount |
| Application | Epoxy Applied Cable Tie Swivel Mount, Used with Miniature, Intermediate, and Standard Cable Ties |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Adhesive |
| Overall Length (In.) | 1.13 |
| Overall Length (mm) | 28.6 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 28.6 |
| Overall Height (In.) | 0.35 |
| Overall Height (mm) | 8.89 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 4.5 |
| Static Load Capacity (lb) | 10 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358005 |
Panduit - ASMS-A-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - ASMS-A-X - Videos
| Panduit ASMS-A-X Video 1 | Click to View |
|---|
