Panduit AST15-5-C100 | AST15-5-C100 Cable Tie, Black, UV PP, Aerial...
Description
Description

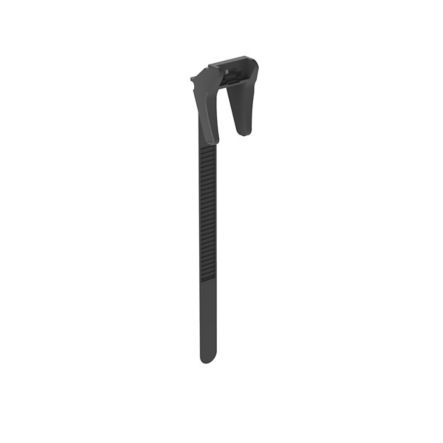

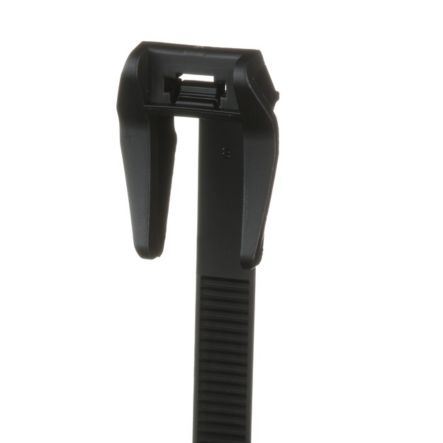

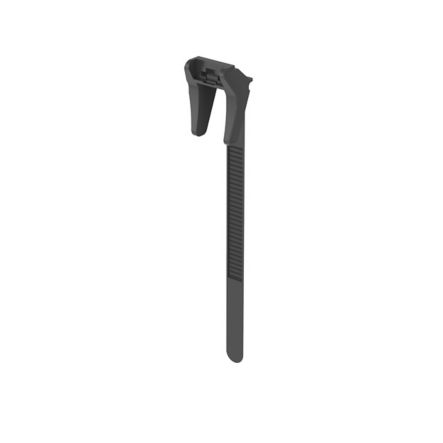

Panduit AST15-5-C100 Aerial Support Ties with integral 1/2" (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 1.5" (38.1mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.
Panduit - AST15-5-C100 - Features
- Aerial Support Tie. 6.9 Inches (175 mm) Length. Weather-resistant Polypropylene. Black. Designed to attach coaxial or telephone cable to the 1/4 inch (6.4 mm) or 5/16 inch (7.9 mm) support strand to form the expansion loop and keep equipment and cables clear of pole hardware. One-piece construction with integral 1/2 inch (12.7 mm) spacer reduces inventory costs of separate spacer and bands. and installs faster to lower installed cost. Releasable and reusable.
- Designed to attach coax or telephone cable to the 1/4"; (6.4mm) or 5/16"; (7.9mm) support strand to form the expansion loop and keep equipment and cables clear of pole hardware
- One-piece construction with integral 1/2"; (12.7mm) spacer reduces inventory costs of separate spacer and bands, and installs faster to lower installed cost
- Releasable and reusable
Specifications
Specifications
Panduit - AST15-5-C100 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - AST15-5-C100 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | AST15-5-C100 |
| Item Description | AST15-5-C100 Cable Tie, Black, UV PP, Aerial Support, 6.9x0.45", PK100 |
| Application | (1) To Attach Coax or Telephone Cable to The 1/4 Inch (6.4Mm) or 5/16 Inch (7.9Mm) Support Strand to form The Expansion Loop and Keep Equipment and Cables Clear of Pole Hardware |
| Product Type | Cable Ties |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Polypropylene |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Loop Tensile Strength (N) | 334 |
| Minimum Loop Tensile Strength (lb) | 75 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Aerial Support |
| Overall Length (In.) | 6.9 |
| Overall Length (mm) | 175.3 |
| Overall Width (In.) | 1.16 |
| Overall Width (mm) | 29.5 |
| Resistance Properties | Heat and UV Resistant |
| Standards Met | RoHS Compliant |
Panduit - AST15-5-C100 - Package Information
| UPC | 07498360103 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.3967 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 3.9670 |
Panduit - AST15-5-C100 - Videos
| Video 1 | Click to View |
|---|
