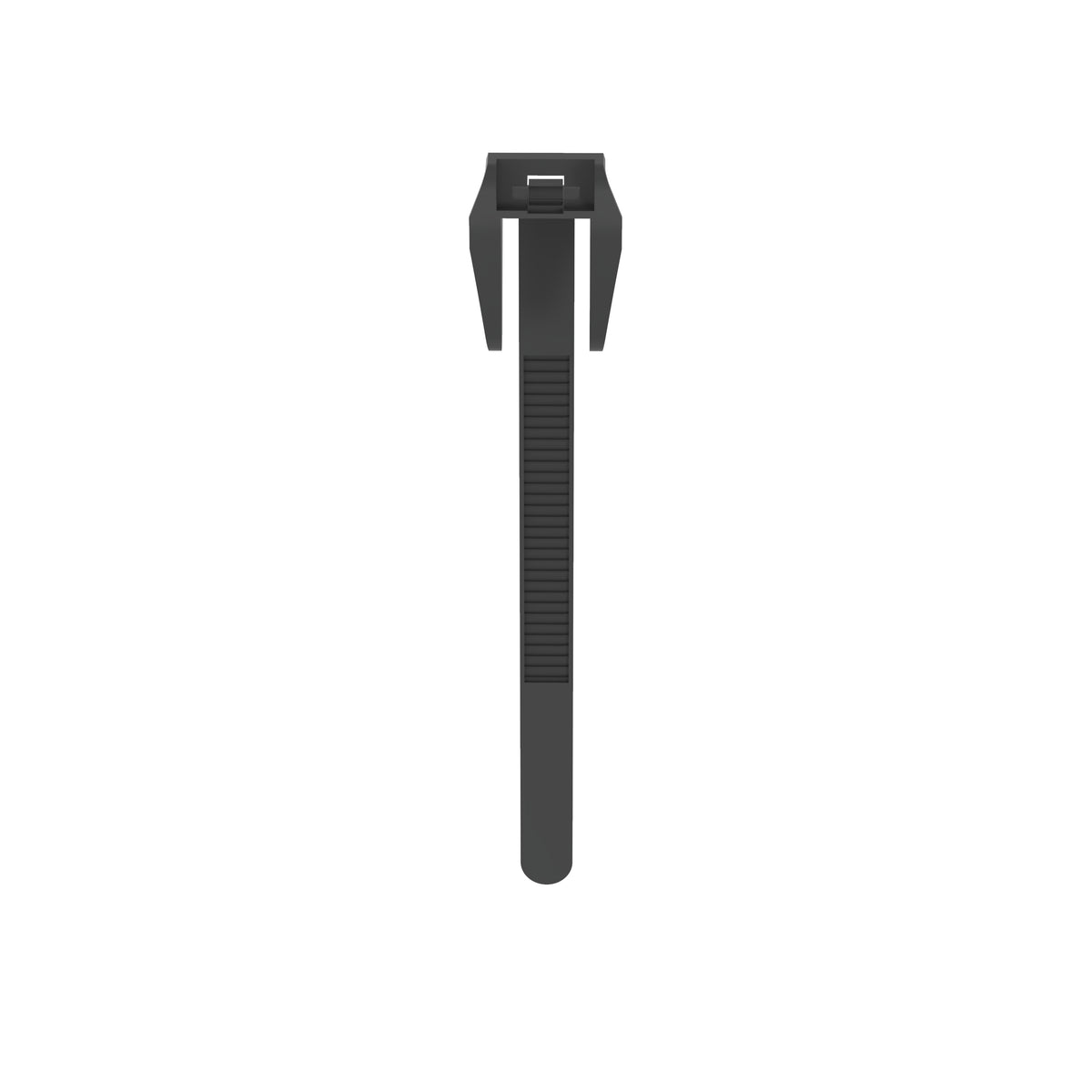

Panduit AST20-5-C100 | Cable Tie, Black, UV PP, Aerial Support, 8.4x0.45", PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit AST20-5-C100 | Cable Tie, Black, UV PP, Aerial Support, 8.4...
Description
Description
Secure outdoors cables with our weather-resistant, reusable aerial support tie. Ideal for coax or telephone cables, they reduce costs and ensure quick, tool-free installation.
Panduit AST25-5-C100 Aerial Support Ties with integral 1/2’ (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 2.5’ (63.5mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.
Panduit Aerial Support Cable Tie, Weather-Resistant, 8.4 in Length, 0.448 in Width, 0.06 in Thickness, 2 in Bundle Dia, Releasable, 75 lb Tensile, -76 to 239 deg F, Polypropylene, Black
Panduit - AST20-5-C100 - Features
- Designed to attach coax or telephone cable to the 1/4 or 5/16 in support strand to form the expansion loop and keep equipment and cables clear of pole hardware
- 1-piece construction with integral 1/2 in spacer reduces inventory costs of separate spacer and bands and installs faster to lower installed cost
- Hand install
- Weather-resistant
Specifications
Specifications
Panduit - AST20-5-C100 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | AST20-5-C100 |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Aerial Support |
| Application | (1) To Attach Coax or Telephone Cable to The 1/4 Inch (6.4Mm) or 5/16 Inch (7.9Mm) Support Strand to form The Expansion Loop and Keep Equipment and Cables Clear of Pole Hardware |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Polypropylene |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 334 |
| Minimum Loop Tensile Strength (lb) | 75 |
| Overall Length (In.) | 8.4 |
| Overall Length (mm) | 213.4 |
| Overall Width (In.) | 1.16 |
| Overall Width (mm) | 29.5 |
| Resistance Properties | Heat-Resistant, UV-Resistant, Weather-Resistant |
| Standards Met | RoHS Compliant |
| UPC | 07498360104 |
Panduit - AST20-5-C100 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - AST20-5-C100 - Videos
| Panduit AST20-5-C100 Video 1 | Click to View |
|---|
