Brand: Panduit
|
SKU:
249928
Panduit BC2S-S10-C Clamp Tie, Metal Barb, 8.5";L (216mm), Standard, Nylon, Natural, Pack of 100
Regular price
$39.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BC2S-S10-C Clamp Tie, Metal Barb, 8.5";L (216mm), Stan...
Regular price
$39.17
Unit price
Description
Description

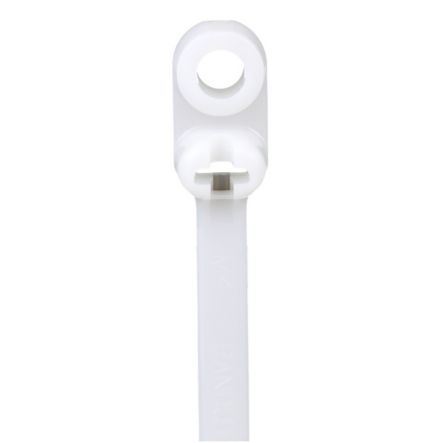

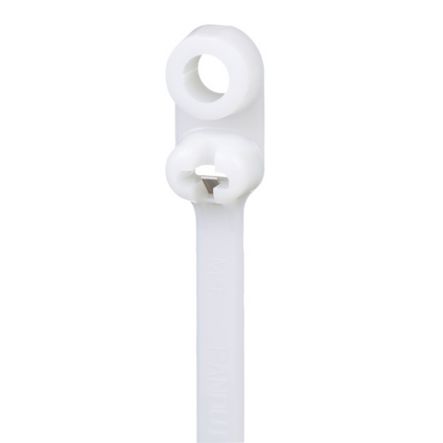

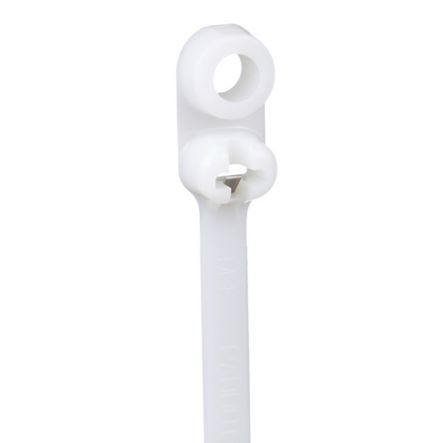

Panduit BC2S-S10-C | Dome-Top BC2S-S10-C Locking Clamp Barb Tie, PA6.6, M5, 8.5"L, 50lb, PK100
The BC2S-S10-C Dome-Top barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.5" (261mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit - BC2S-S10-C - Features
- For indoor use
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
- Design allows for bundling before or after screwing clamp in place
- Stainless steel locking barb provides consistent performane, reliability and infinite adjustability through entire bundle range
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BC2S-S10-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BC2S-S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BC2S-S10-C |
| Item Description | Dome-Top BC2S-S10-C Locking Clamp Barb Tie, PA6.6, M5, 8.5"L, 50lb, PK100 |
| Product Type | Locking Clamp Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8.5 |
| Overall Length (mm) | 216 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Screw Size | #10 (M5) |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Mounting Hole Width (In.) | 0.4 |
| Mounting Hole Width (mm) | 10.2 |
| Mounting Hole Diameter (In.) | 0.2 |
| Mounting Hole Diameter (mm) | 5.1 |
| Standards Met | UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854) |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E |
| Application | Used to secure a cable bundle to another surface such a control panel, wall or ceiling. |
Panduit - BC2S-S10-C - Package Information
| UPC | 07498352314 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0321 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.3207 |
