Brand: Panduit | SKU: 317714

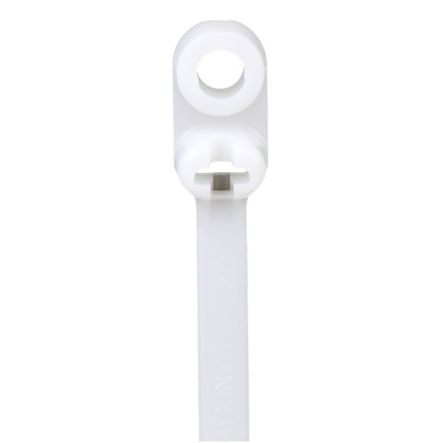

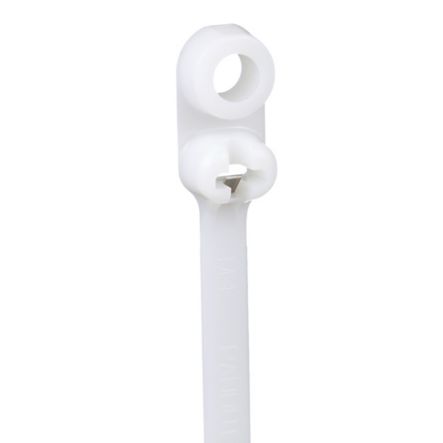

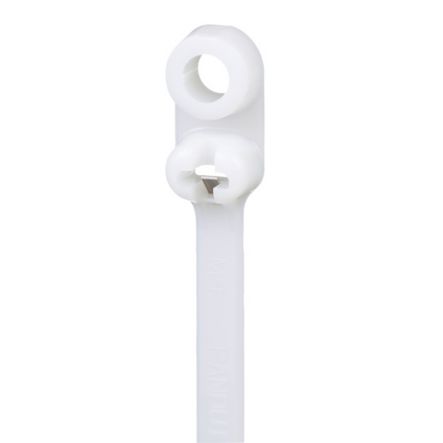

Panduit BC4S-S10-C | Dome-Top BC4S-S10-C Cable Tie

Name: Panduit BC4S-S10-C | Dome-Top BC4S-S10-C Cable Tie
Brand: Anixter
SKU: 317714
Price: 107.27 USD
Availability: InStock

$107.27

Shipping calculated at checkout.

Description

Dome-Top barb ty clamp tie, standard cross section, #10 (M5) screw, 15.6 (396mm) length, nylon 6.6, natural, standard package.

For indoor use
Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
Design allows for bundling before or after screwing clamp in place
Stainless steel locking barb provides consistent performane, reliability and infinite adjustability through entire bundle range
Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Brand Name	Panduit
Manufacturer Part Number	BC4S-S10-C
Item Description	Dome-Top BC4S-S10-C Cable Tie
Product Type	Cable Tie
Sub Brand	Dome-Top
Color	Natural
Environment	Plenum
Material	Nylon 6.6
Overall Length (In.)	15.6
Overall Length (mm)	396
Body Width (In.)	0.185
Body Width (mm)	4.7
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Maximum Bundle Diameter (In.)	4
Maximum Bundle Diameter (mm)	101.6
Minimum Bundle Diameter (In.)	0.06
Minimum Bundle Diameter (mm)	1.5
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Screw Size	#10 (M5)
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Standards Met	UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
Application	General

Video 1	Click to View
