Panduit BC4S-S10-C0 | Cable Tie | UPC - 07498352331
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
948381
Regular price
$1.46
Unit price
Description
Description

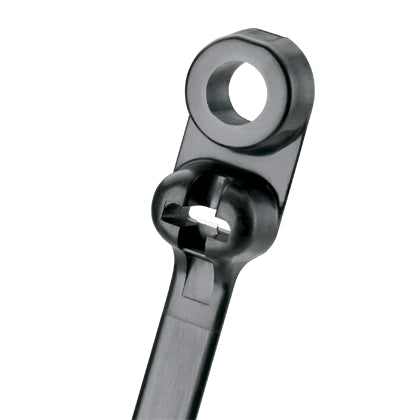

Panduit Barb-Ty Dome-Top Clamp Tie, Standard, Series: BC Series, 15.6 in Length, 0.19 in Width, 0.05 in Thickness, 4 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- The 2-piece design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Offers high strength and superior performance
- Dome-Top head having smooth, round edges is easy for installers to handle
- Anti-slip ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Design allows for bundling before or after screwing clamp in place
- Curved tip orients tip toward head for faster initial threading to speed installation
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
Panduit BC4S-S10-C0 Key Specs
| Application | General |
| Product Type | Cable Tie |
| Color | Black |
| Environment | Outdoor (UV Resistant) |
| Material | Weather Resistant Nylon 6.6 |
| Standards Met | UL Recognized (File #E56854) |
| Screw Size | #10 (M5) |
| Maximum Bundle Diameter (In.) | 4 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Sub Brand | Dome-Top |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Maximum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Installation Temperature (°F) | 32 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
Panduit BC4S-S10-C0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD1-56CF-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
