Brand: Panduit
|
SKU:
494692-EA

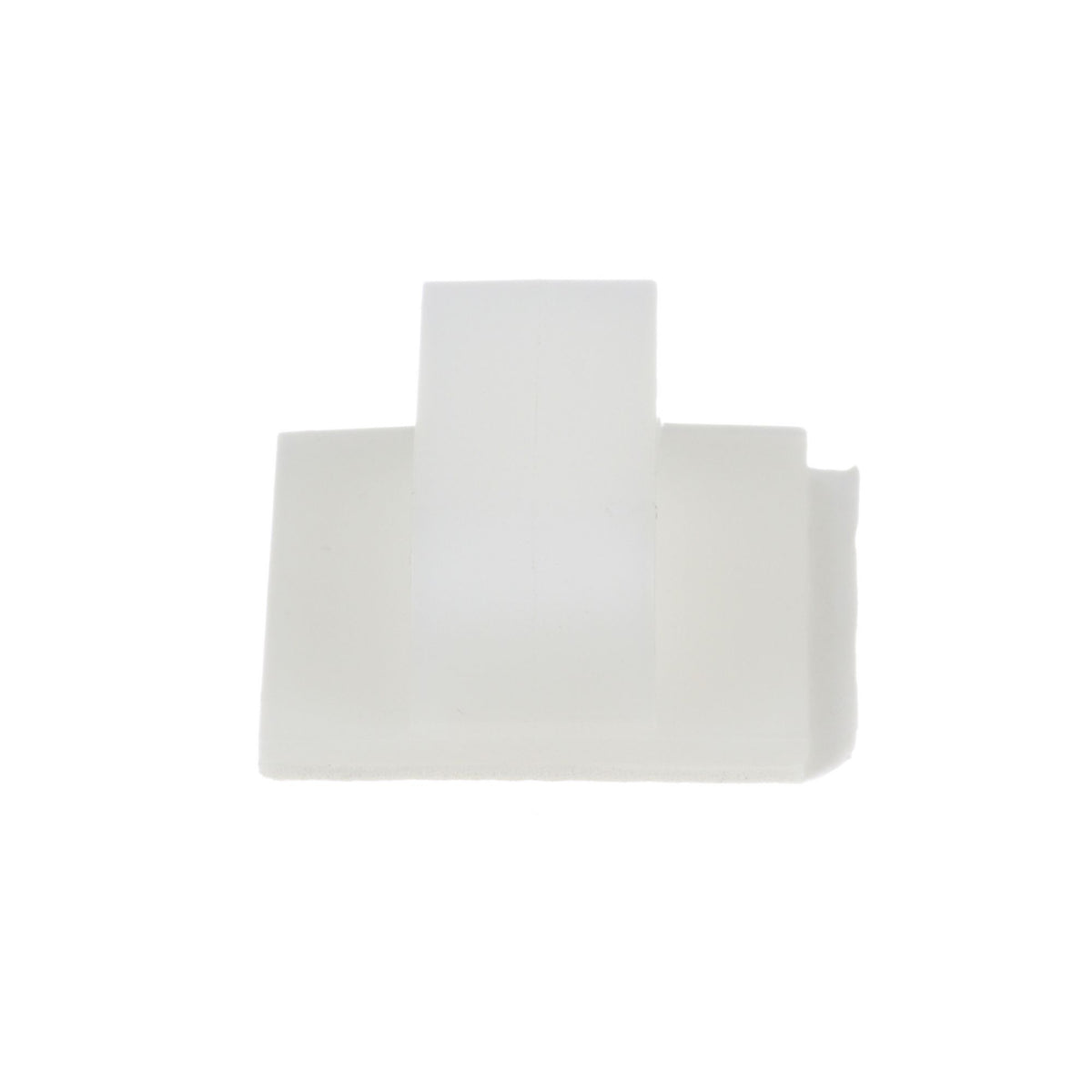

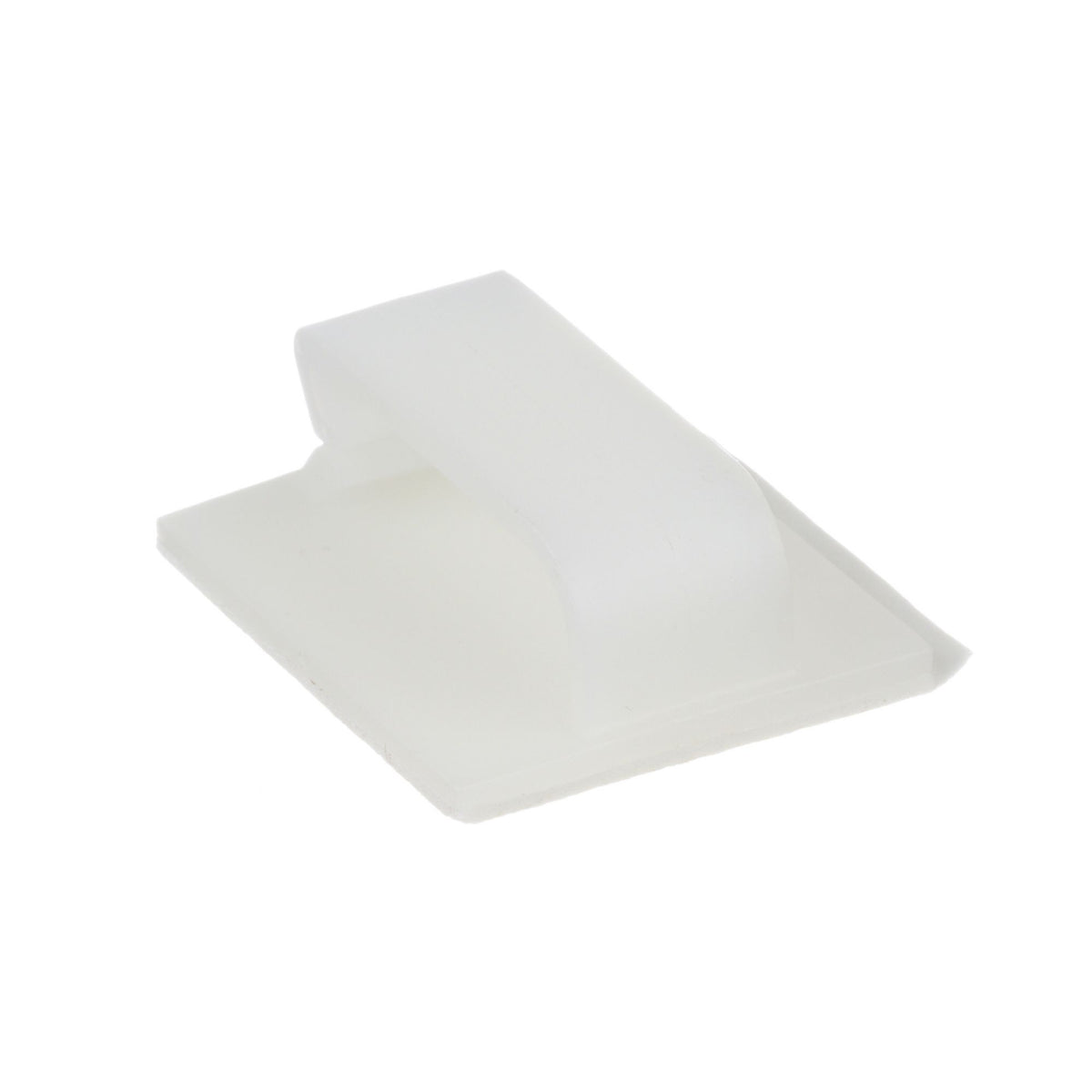

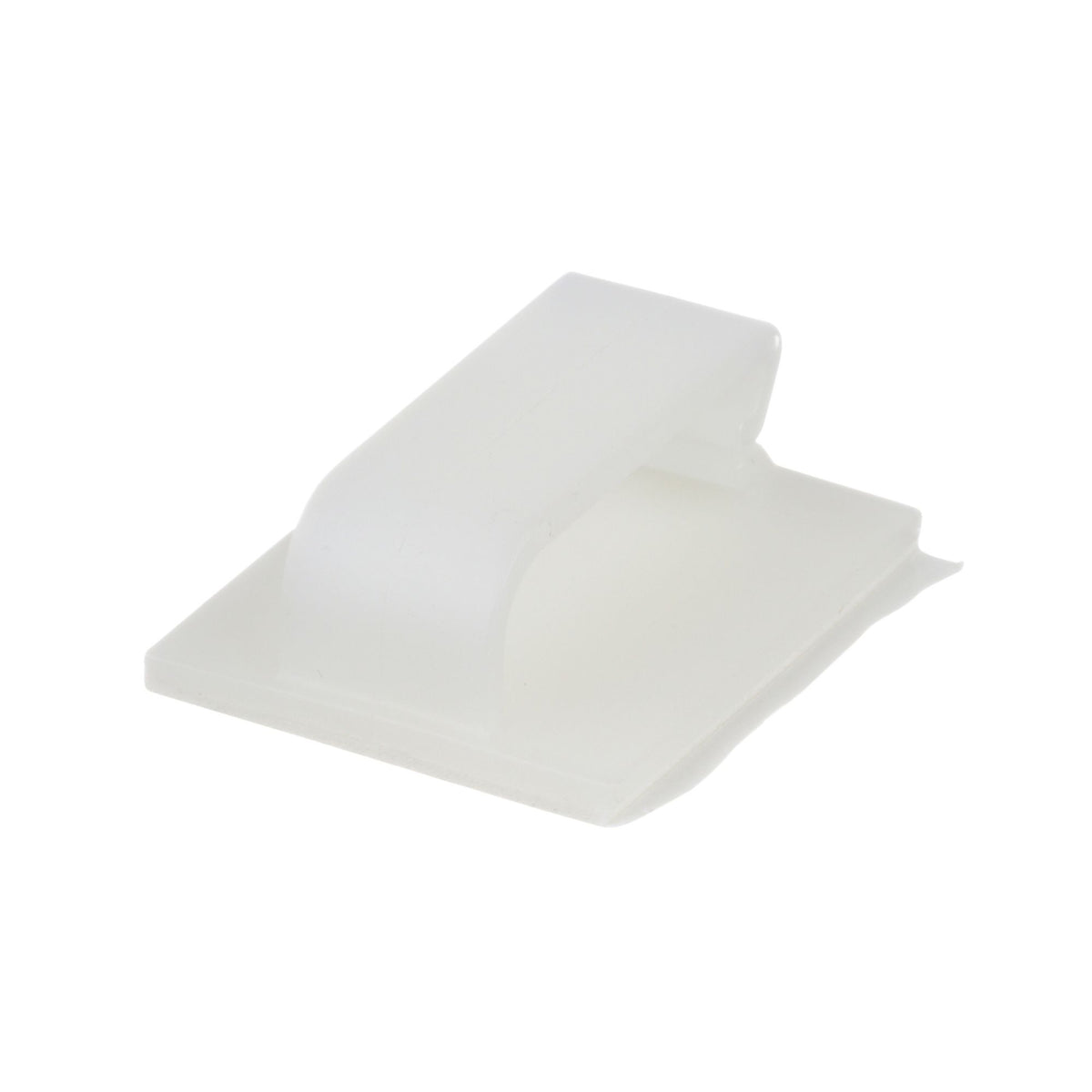

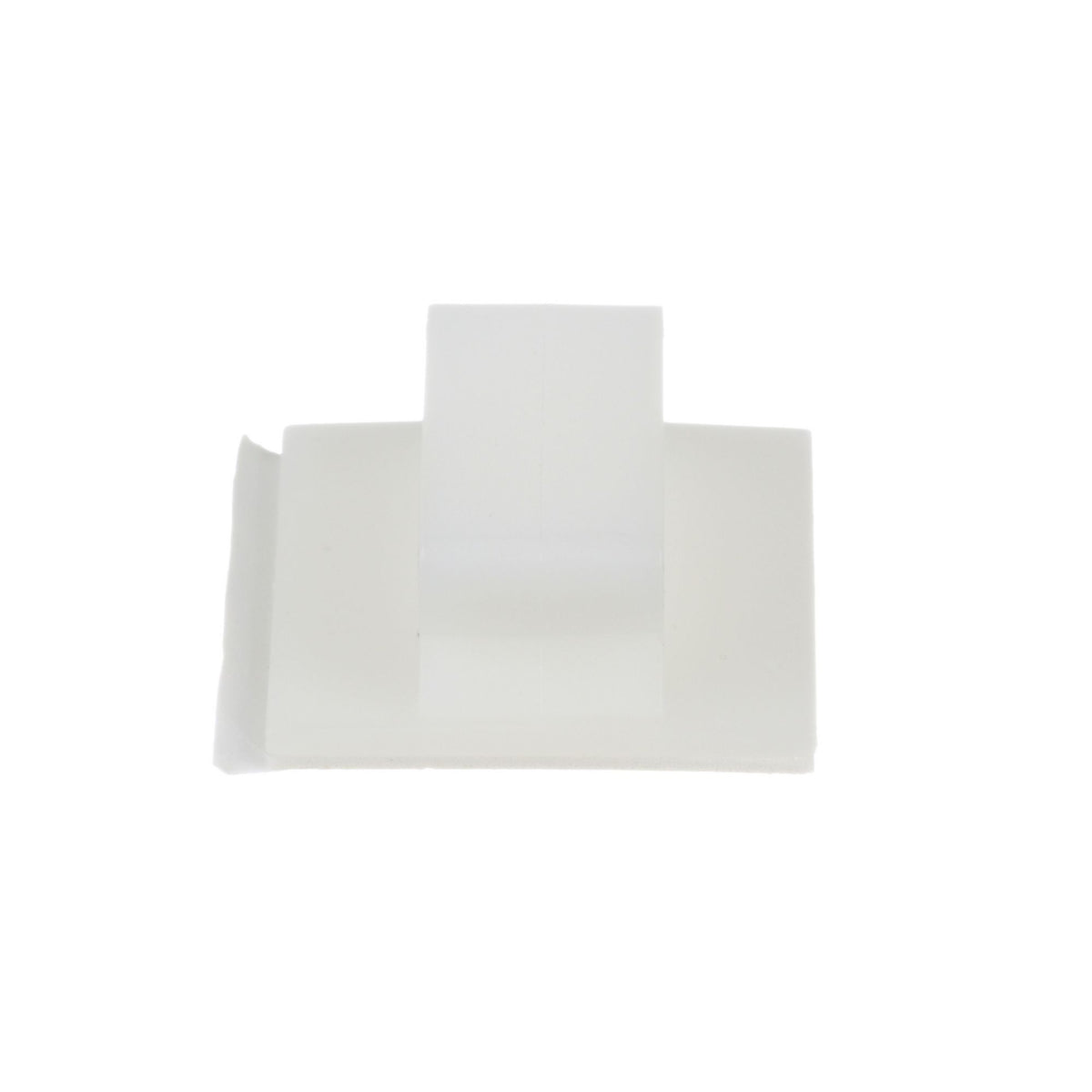

Panduit BEC38-A-L | BEC38-A-L Wire Clip, Natural, PA 6.6, Rubber Adh., 1.46x1.24x0.52", PK50
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BEC38-A-L | BEC38-A-L Wire Clip, Natural, PA 6.6, Rubber Ad...
Regular price
$3.00
Unit price
Description
Description
Panduit BEC38-A-L | BEC38-A-L Wire Clip, Natural, PA 6.6, Rubber Adh., 1.46x1.24x0.52", PK50
Panduit’s BEC38-A-L rubber-based adhesive backed bevel entry clips provide a strong and reliable bond and fast installation. With the ability to attach and detach without disturbing the clip mount, it makes the insertion of cable bundles quick and easy. Maximum bundling diameter of 0.38" (9.6mm). Made of Nylon 6.6, are natural in color and come in packages 50.
Panduit BEC38-A-L - CLIP - ADHESIVE BKD BEVEL ENTRY CLIP
Specifications
Specifications
Panduit - BEC38-A-L - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - BEC38-A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BEC38-A-L |
| Item Description | BEC38-A-L Wire Clip, Natural, PA 6.6, Rubber Adh., 1.46x1.24x0.52", PK50 |
| Application | Route and Secure Cords and Cables |
| Product Type | Wire Clip |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.38 |
| Maximum Bundle Diameter (mm) | 9.6 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.2 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 1.24 |
| Overall Width (mm) | 31.5 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.411 |
| Vertical Static Load Capacity (lb) | 0.91 |
| Horizontal Static Load Capacity (kg) | 0.411 |
| Horizontal Static Load Capacity (lb) | 0.91 |
Panduit - BEC38-A-L - Package Information
| UPC | 07498322304 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0579 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.5793 |
Panduit - BEC38-A-L - Videos
| Video 1 | Click to View |
|---|
