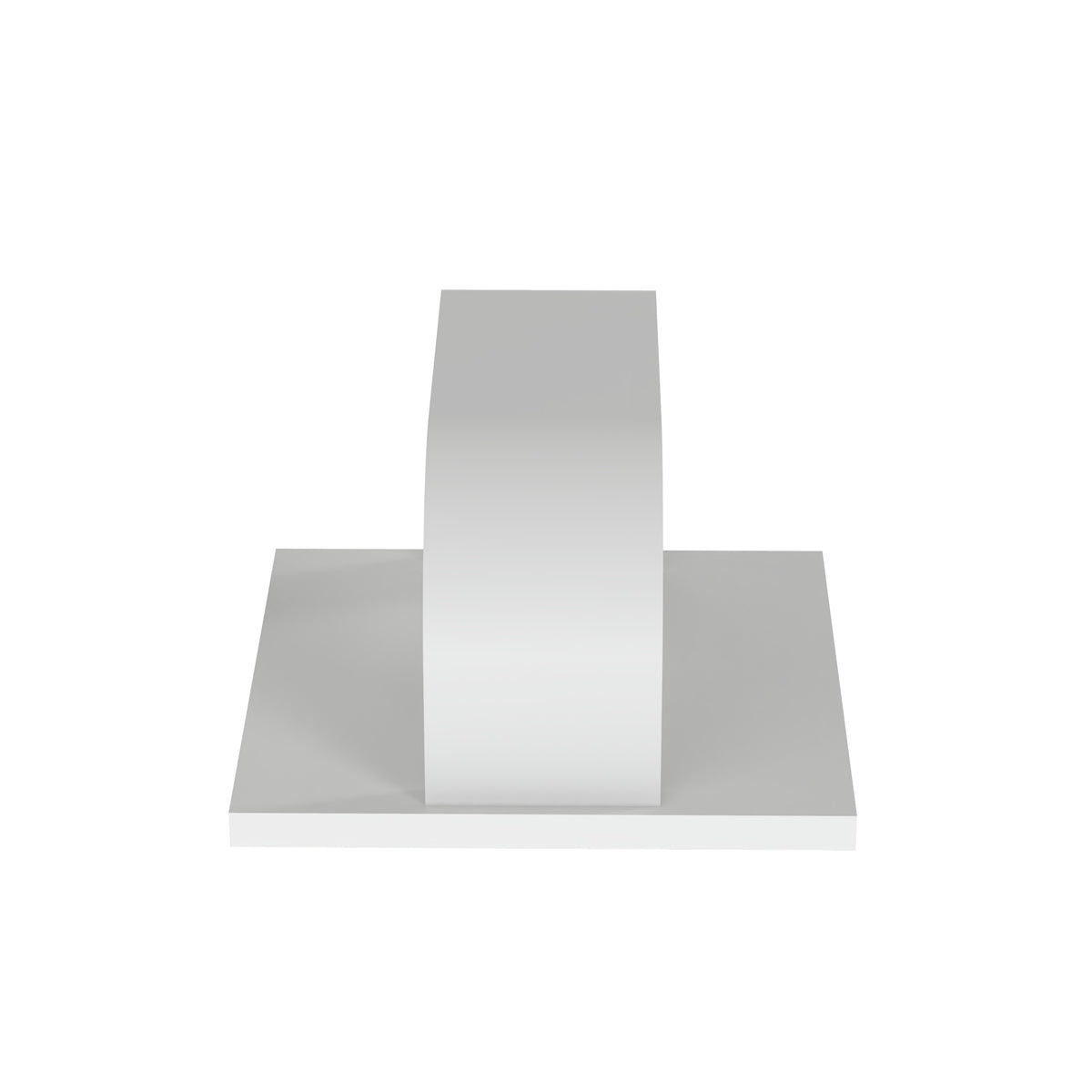

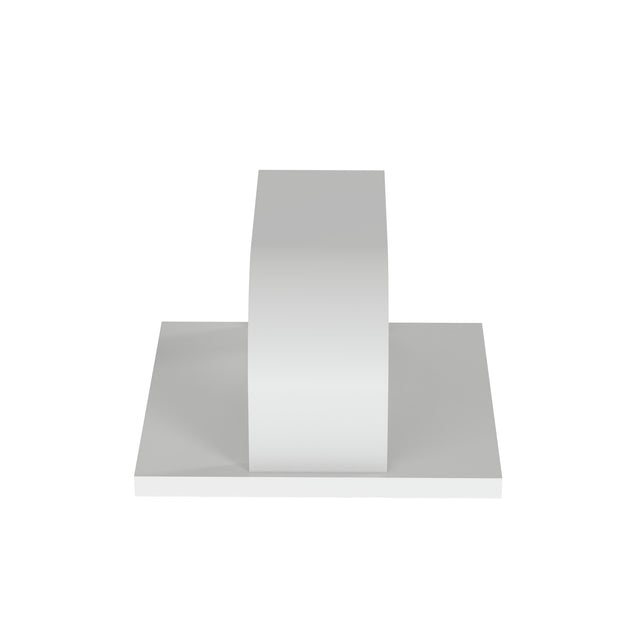

Panduit BEC75-A-L | Wire Clip, Natural, PA 6.6, Rubber Adh., 1.46x1.49x0.89", PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BEC75-A-L | Wire Clip, Natural, PA 6.6, Rubber Adh., 1.46x1...
Description
Description
Secure your cable bundles effortlessly with our adhesive-backed cord clip. It sticks firmly to walls, cabinets, and equipment, while the bevel entry makes adding or removing cables a snap.
Adhesive Backed Bevel Entry Clip
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cord Clip, Bevel Entry, 3/4 in Cable, 1.09 lb Static, Rubber Adhesive Mount, 225 A, 27/31/36/40/44 in W Box Range, Natural, Nylon 6.6, 1.46 in L x 1.49 in W x 0.89 in H
Panduit - BEC75-A-L - Features
- Releasable latches allow addition or removal of cables
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
- Beveled entry allows for easy insertion of cable bundle
- Rubber-based adhesive provides a strong and reliable bond
- Acrylic-based adhesive withstands higher temperatures and outdoor environment
Specifications
Specifications
Panduit - BEC75-A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BEC75-A-L |
| UNSPSC Code | 31162900 |
| Product Type | Wire Clip |
| Application | Route and Secure Cords and Cables |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 1.49 |
| Overall Width (mm) | 37.8 |
| Overall Height (In.) | 0.89 |
| Overall Height (mm) | 22.6 |
| Standards Met | RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.493 |
| Vertical Static Load Capacity (lb) | 1.09 |
| Horizontal Static Load Capacity (kg) | 0.493 |
| Horizontal Static Load Capacity (lb) | 1.09 |
| UPC | 07498322306 |
Panduit - BEC75-A-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - BEC75-A-L - Videos
| Panduit BEC75-A-L Video 1 | Click to View |
|---|
