Panduit BEC75-A-L20 | BEC75-A-L20 Wire Clip
Regular price
$130.76
Unit price
Description
Description

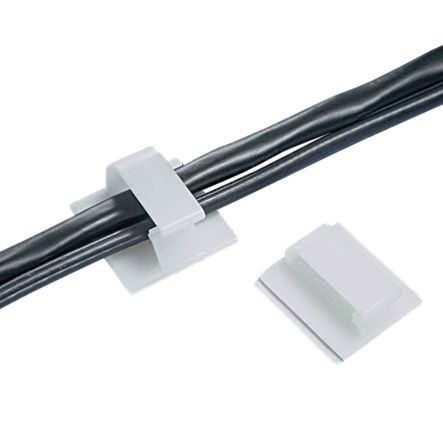

Panduit BEC75-A-L20 | BEC75-A-L20 Wire Clip
Adhesive backed bevel entry clip, .75" (19.1mm) bundle, black, standard package.
Panduit - BEC75-A-L20 - Features
- Adhesive Backed Bevel Entry Clip
- Beveled entry allows for easy insertion of cable bundle
- Rubber-based adhesive provides a strong and reliable bond
- Acrylic-based adhesive withstands higher temperatures and outdoor environment
Specifications
Specifications
Panduit - BEC75-A-L20 - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - BEC75-A-L20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BEC75-A-L20 |
| Item Description | BEC75-A-L20 Wire Clip |
| Application | Beveled Entry Allows for Easy Insertion of Cable Bundle |
| Product Type | Wire Clip |
| Adhesive Material | Rubber |
| Body Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19.1 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.89 |
| Overall Height (mm) | 22.6 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 1.49 |
| Overall Width (mm) | 37.8 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.494 |
| Vertical Static Load Capacity (lb) | 1.09 |
| Horizontal Static Load Capacity (kg) | 0.494 |
| Horizontal Static Load Capacity (lb) | 1.09 |
Panduit - BEC75-A-L20 - Package Information
| UPC | 07498323716 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0862 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.8622 |
