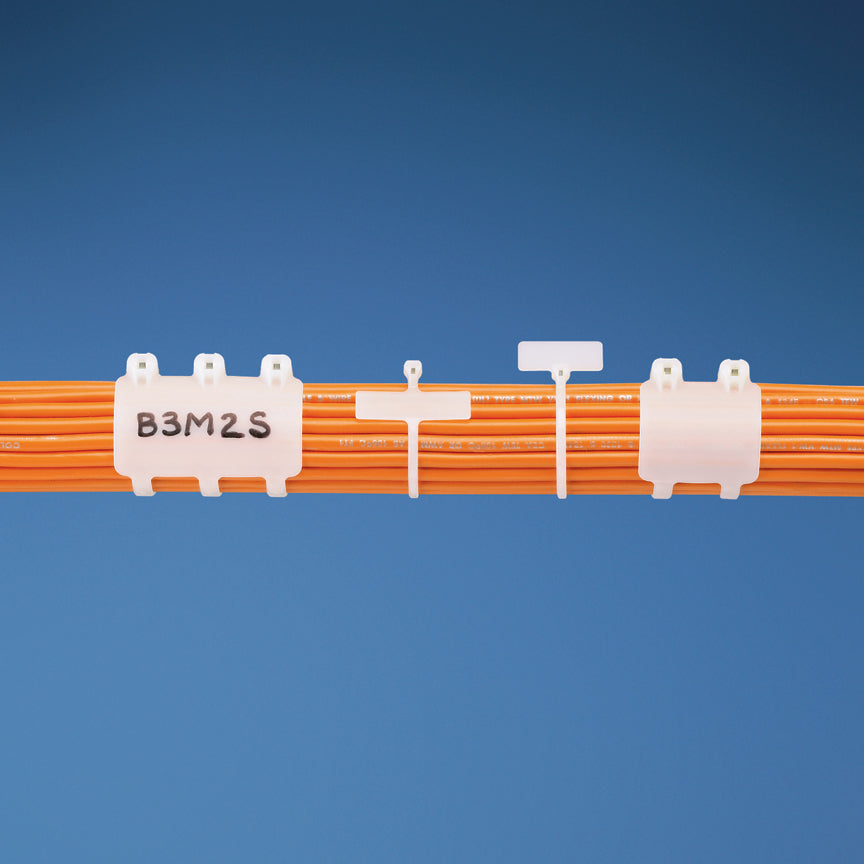

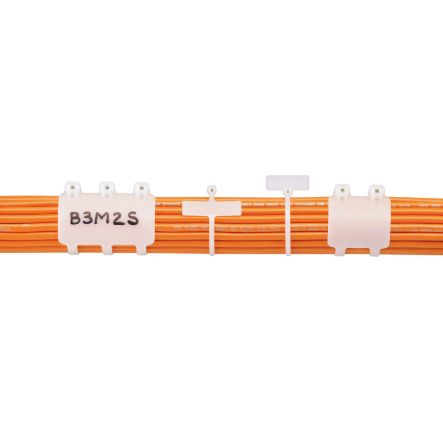

Panduit BM1M-C | Cable Tie
Regular price
$43.09
Unit price
Brand: Panduit
|
SKU:
PAN-BM1M-C
Regular price
$43.09
Unit price
Description
Description
Panduit BM1M-C | Cable Tie
Panduit Dome-Top Marker Cable Tie, Miniature Wrap, Series: BM Series, 4.2 in Length, 0.1 in Width, 0.05 in Thickness, 0.9 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - BM1M-C - Features
- Weather-resistant material has greater resistance to damage caused by ultraviolet light
- Used to fasten and identify bundles at the same time
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- Can be marked with Panduit marker pens on the previous page or computer printable labels
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Custom imprinting with text, symbols or trademarks available using Panduit custom hot stamping service
Specifications
Specifications
Panduit - BM1M-C - Specifications
| Product Type | Cable Tie |
|---|---|
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| For Use With | Bundles |
| Marker Type | Wrap |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 23 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498373850 |
