Brand: Panduit
|
SKU:
PAN-BM1M-C-EA
Panduit BM1M-C | Dome-Top BM1M-C Cable Tie
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BM1M-C | Dome-Top BM1M-C Cable Tie
Regular price
$1.46
Unit price
Description
Description

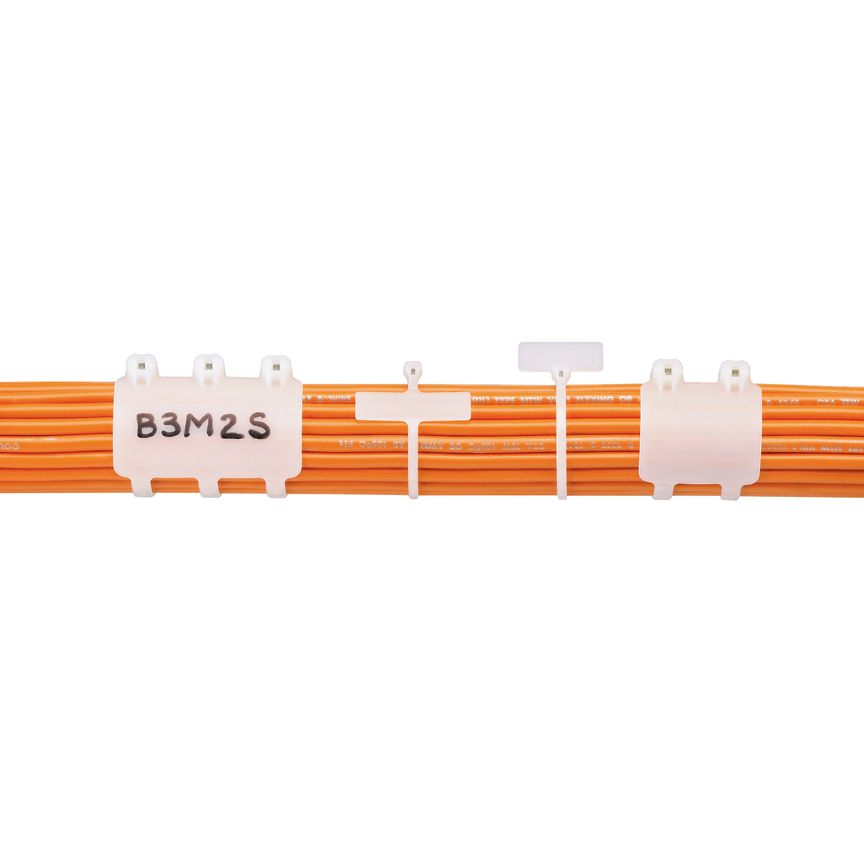

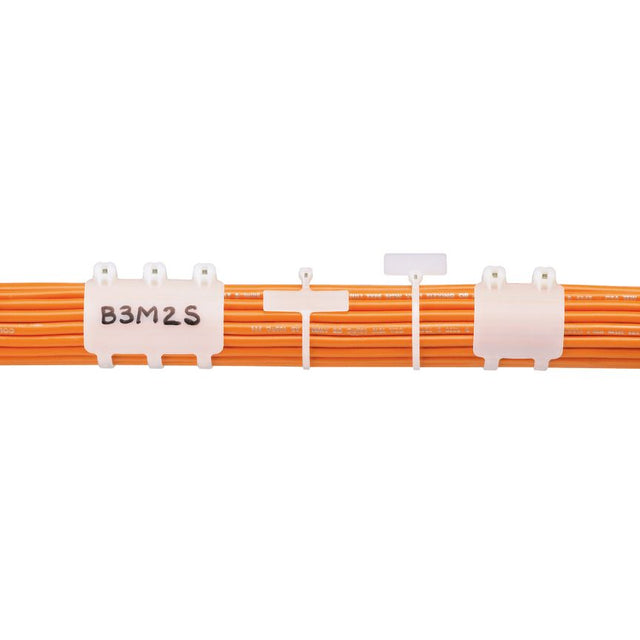

Panduit BM1M-C | Dome-Top BM1M-C Cable Tie
Dome-Top barb ty marker tie, wrap, miniature cross section, 4.2 (107mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, standard package.
Panduit BM1M-C - MARKER - MARKER TIE WITH METAL BARB
Specifications
Specifications
Panduit - BM1M-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BM1M-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BM1M-C |
| Item Description | Dome-Top BM1M-C Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 4.2 |
| Overall Length (mm) | 107 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.046 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 23 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant |
| Military Cross Reference Number | MS3368-5-9E |
| For Use With | Bundles |
| Application | General |
Panduit - BM1M-C - Package Information
| UPC | 07498373850 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0236 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.2363 |
