Panduit BM1M-M | Dome-Top BM1M-M Cable Tie
Description
Description

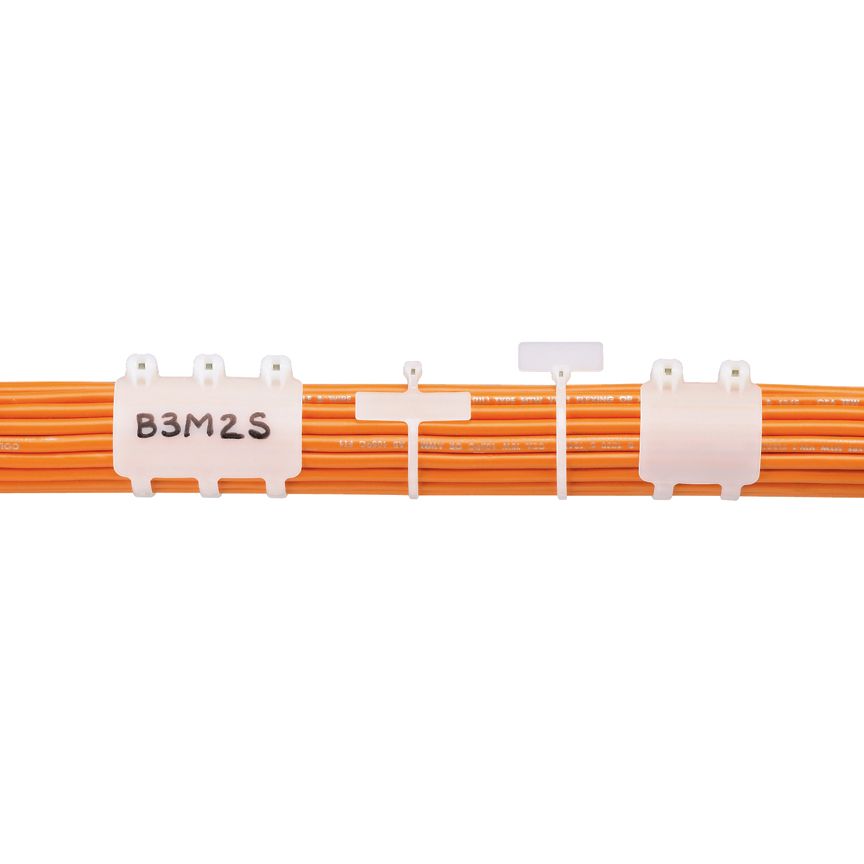

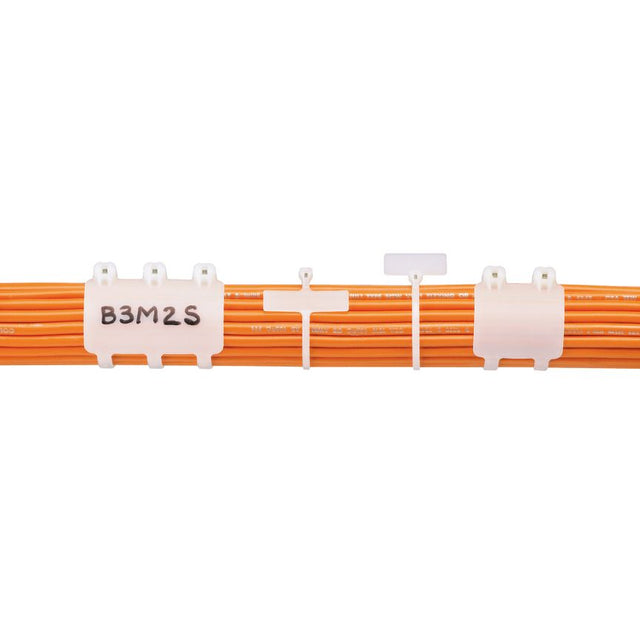

Dome-Top barb ty marker tie, wrap, miniature cross section, 4.2 (107mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, bulk package.
Marker Tie, Wrap Style, 4.2 Inches (107 mm) Length, Miniature, Nylon, Natural. For indoor use. Used to fasten and identify bundles at the same time. Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. Can be marked with Panduit Marker Pens (sold separately) or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.
Specifications
Specifications
Panduit - BM1M-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BM1M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BM1M-M |
| Item Description | Dome-Top BM1M-M Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Marker Type | Wrap |
| Overall Length (In.) | 4.2 |
| Overall Length (mm) | 107 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.046 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 23 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -70 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant |
| Military Cross Reference Number | MS3368-5-9E |
| Application | General |
| Cable Tie Diameter | 4" |
| Type | CABLES TIES AND ACCESSORIES |
| UNSPSC Code | 55120000 |
Panduit - BM1M-M - Package Information
| UPC | 07498373851 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1587 |
| Standard Ctn. Quantity | 25000 |
| Standard Ctn. Volume (cf) | 3.9670 |
