Brand: Panduit
|
SKU:
BPC1-X

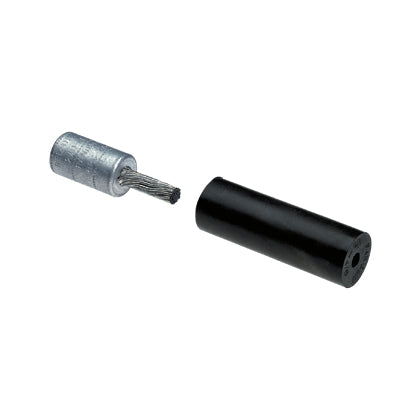

Panduit BPC1-X | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391345
Regular price
$13.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BPC1-X | Tin-Plated Aluminum Compression Connectors - Bi-Me...
Regular price
$13.98
Unit price
Description
Description
Panduit Pan-Lug Pin Connector, Bi-Metallic, Series: BPC, 600 VAC, Aluminum Conductor, 3 to 1 AWG Conductor, 1 in Stem Length, Die Code: P50, Aluminum, Tin Plated, 2.58 in L
Features + Benefits
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color coded end plug and Panduit die index number marked on barrel for proper crimp die selection
- Insulating rubber sleeve included to insulate aluminum barrel from contact with copper connector when attached to pin
- Tin plated to inhibit corrosion
- Provides copper pigtail for connecting aluminum conductors in a copper or aluminum/copper rated mechanical lug
- 3 to 1 AWG copper/aluminum
Panduit BPC1-X | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391345 Key Specs
| Product Type | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins |
| Aluminum Conductor Size (AWG) | #1 |
| Aluminum Conductor Size (kcmil) | 84 |
| Sub Brand | Pan-Lug |
| Overall Length (In.) | 2.58 |
| Overall Length (mm) | 65.5 |
| Color Code | Tan |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 296 |
| Wire Strip Length (In.) | 1.06 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Insulating rubber sleeve to insulate aluminum barrel from contact with copper connector when attached to pin. |
Panduit BPC1-X | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391345 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - BPC6-L Product Page | Download and View |
| Part Drawings | Bi-Metallic Pin Connector - N41292BB-C41292/04 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit BPC1-X | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391345 Environmental Information
| Panduit's RoHS Statement | Download and View |
