Brand: Panduit
|
SKU:
BPC750-6

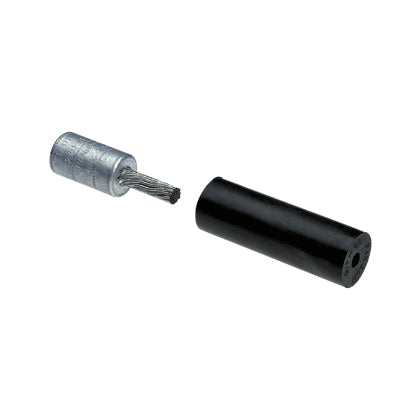

Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391356
Regular price
$52.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-...
Regular price
$52.68
Unit price
Brand: Panduit
|
SKU:
BPC750-6
Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391356
Regular price
$52.68
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Pin Connector, Bi-Metallic, Series: BPC, 600 VAC, Aluminum Conductor, 500 to 750 kcmil Conductor, 2 in Stem Length, Die Code: P125, Aluminum, Tin Plated, 4.9 in L
Features + Benefits
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color coded end plug and Panduit die index number marked on barrel for proper crimp die selection
- Insulating rubber sleeve included to insulate aluminum barrel from contact with copper connector when attached to pin
- Tin plated to inhibit corrosion
- Provides copper pigtail for connecting aluminum conductors in a copper or aluminum/copper rated mechanical lug
- 500 to 750 kcmil copper/aluminum
Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391356 Key Specs
| Product Type | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins |
| Aluminum Conductor Size (kcmil) | 750 |
| Sub Brand | Pan-Lug |
| Overall Length (In.) | 4.9 |
| Overall Length (mm) | 124.5 |
| Color Code | Red |
| Panduit Die Index Number | P125 |
| Burndy Die Index Number | 936 |
| Wire Strip Length (In.) | 1.94 |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Part Features | Insulating rubber sleeve to insulate aluminum barrel from contact with copper connector when attached to pin. |
Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391356 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - BPC6-L Product Page | Download and View |
| Part Drawings | Bi-Metallic Pin Connector - N41292BB-C41292/04 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit BPC750-6 | Tin-Plated Aluminum Compression Connectors - Bi-Metallic Pins | UPC - 07498391356 Environmental Information
| Panduit's RoHS Statement | Download and View |
