Panduit BS10-D | Butt Splice
Description
Description

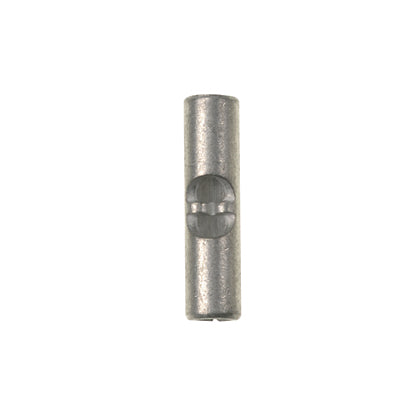

The BS10-D Pan-Term Splice is a non-insulated butt splice. Internal wire stop assures proper insertion length for a quality connection. Brazed seem protects the terminal barrel from splitting during the crimp process.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Metallic Loose Piece Non-Insulated, Series: BS Series, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 0.63 in Length, Brazed Seam/Standard Barrel, 0.22 in OD Barrel, 2000 VAC, 9/32 in L Wire Strip, 302 deg F, Copper, TiN Coated
Panduit - BS10-D - Features
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal wire stop assures proper length of insertion into terminal barrel
- Maximum recommended operating temperature 302F (150C)
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
Specifications
Specifications
Panduit - BS10-D - Specifications
| Type | Butt Connector |
|---|---|
| UNSPSC Code | 39121400 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #12 - #10 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Insulation Material | Non-Insulated |
| Standards Met | C22.2 No 65, UL 486C |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.22 |
| Overall Width (mm) | 5.6 |
| UPC | 07498383205 |
