Panduit BS100445 | StructuredGround Braided Bonding Strap
Regular price
$99.63
Unit price
Brand: Panduit
|
SKU:
699142-DEMO
Regular price
$99.63
Unit price
Description
Description

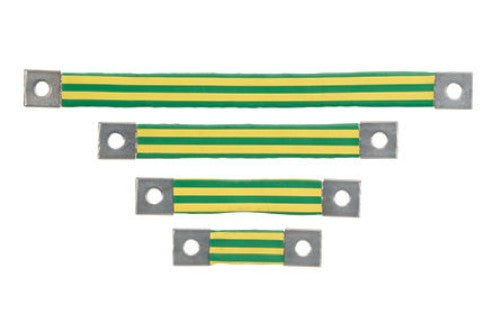

Panduit BS100445 | StructuredGround Braided Bonding Strap
Shield your electrical equipment from interference with our insulated braided bonding strap, offering various lengths to securely connect enclosures, motors, and panels while reducing unwanted noise.
Specifications
Specifications
Panduit - BS100445 - Specifications
| Product Type | Braided Bonding Strap |
|---|---|
| Sub Brand | StructuredGround™ |
| Insulated | Yes |
| Material | Copper/Tin |
| Color | Green/Yellow |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 1.06 |
| Overall Width (mm) | 27 |
| Ferrule Length (In.) | 1 |
| Ferrule Length (mm) | 25.4 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Application | Control Panel |
| Standards Met | cULus Listed - 467 for Bonding Applications Only |
| Part Features | Flat seamless ferrule end design helps to reduce the effects of EMI (Electromagnetic Interference) |
