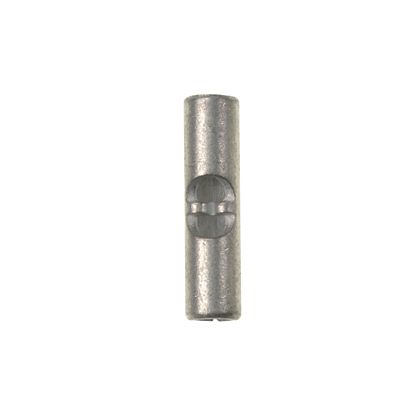

Panduit BS14-C | Pan-Term Butt Splice
Description
Description
For fast and reliable repairs or wire extensions in electrical projects, our butt splice simplifies wire connections.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Metallic Loose Piece Non-Insulated, Series: BS Series, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 0.62 in Length, Brazed Seam/Standard Barrel, 0.16 in OD Barrel, 2000 VAC, 9/32 in L Wire Strip, 302 deg F, Copper, TiN Coated
Panduit - BS14-C - Features
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
Specifications
Specifications
Panduit - BS14-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BS14-C |
| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 16-14 |
| Copper Code Conductor Size (AWG) | 16-14 |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 0.62 |
| Overall Length (mm) | 15.7 |
| Overall Width (In.) | 0.16 |
| Overall Width (mm) | 4.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 302 |
| CSA Temperature Rating (°C) | 150 |
| UPC | 07498383202 |
Panduit - BS14-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
