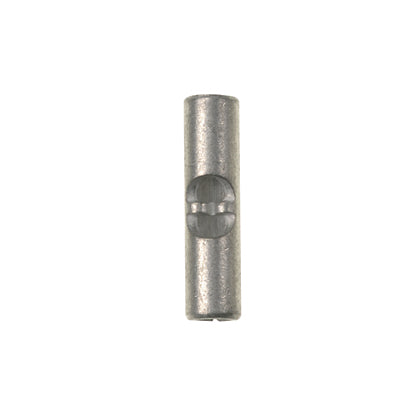

Panduit BS14-M | Butt Splice
Description
Description
Butt Splice, non-insulated, 16 ’" 14 AWG wire range, bulk package.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Metallic Loose Piece Non-Insulated, Series: BS Series, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 0.62 in Length, Brazed Seam/Standard Barrel, 0.16 in OD Barrel, 2000 VAC, 9/32 in L Wire Strip, 302 deg F, Copper, TiN Coated
Panduit - BS14-M - Features
- Tin plated to inhibit corrosion
- Internally beveled wire entry for fast and easy installation
- Product information marked on connector for selection and installation
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal wire stop assures proper length of insertion into terminal barrel
- Maximum recommended operating temperature 302F (150C)
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
Specifications
Specifications
Panduit - BS14-M - Specifications
| Type | Butt Connector |
|---|---|
| UNSPSC Code | 39121400 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #14 |
| UPC | 07498383203 |
