Panduit BS201846EU | Two Hole Non-Insulated | UPC - 07498311612
Regular price
$144.95
Unit price
Description
Description

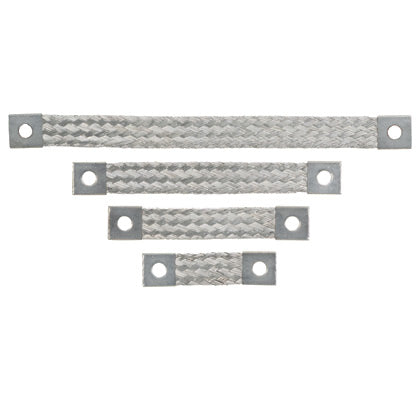

Panduit StructuredGround Flat Braid Bonding Strap, 2-Hole Non-Insulated, 4 AWG Cable, 18 in Length, 1.06 in Width, 0.13 in Thickness, 3/8 in Mounting Hole, Copper, Tin Plated
Features + Benefits
- Flat ferrule end design helps to reduce the effects of EMI
- Made of high conductivity copper and tin plated to inhibit corrosion
- Seamless ferrule ends provide mechanical strength for improved reliability
- Available with internationally recognized green and yellow insulation for grounding application
Panduit BS201846EU Key Specs
| Sub Brand | StructuredGround |
| Product Type | Two Hole Non-Insulated |
| Material | Tin-plated Copper |
| Color | Metallic |
| Overall Length (In.) | 18 |
| Overall Length (mm) | 457.2 |
| Overall Width (In.) | 1.06 |
| Overall Width (mm) | 27 |
| Ferrule Length (In.) | 2.5 |
| Ferrule Length (mm) | 36.5 |
| Stud Hole Spacing (In.) | 1.25 |
| Stud Hole Spacing (mm) | 31.8 |
| Stud Hole Size (In.) | 0.375 |
| Stud Hole Size (mm) | 10 |
| Application | Control Panel |
| Standards Met | cULus Listed - 467 for Bonding Applications Only |
| Part Features | Flat seamless ferrule end design helps to reduce the effects of EMI (Electromagnetic Interference) |
Panduit BS201846EU Data Sheets
| Specification Sheets | Specification Sheet - WW-GRSP12 (structuredground flat braided bonding straps) WEB 8-3-11 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - BS100445 Product Page | Download and View |
| Product Bulletins | StructuredGround Mechanical Connectors: GRCB02--SA-ENG | Download and View |
