Panduit BS202446EU | StructuredGround Grounding
Shield your electrical equipment from interference with our insulated braided bonding strap, offering various lengths to securely connect enclosures, motors, and panels while reducing unwanted noise.

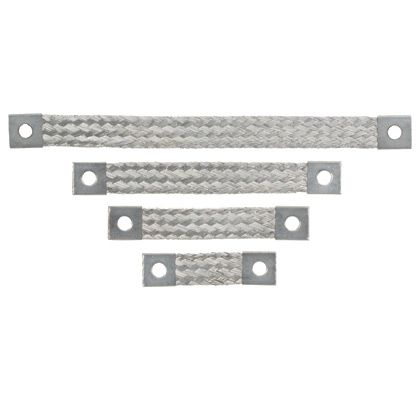

Braided Bonding Strap, two-hole, non-insulated, 24.00" length x 1.06" width (609.6mm x 27.0mm).
Panduit StructuredGround Flat Braid Bonding Strap, 2-Hole Non-Insulated, 4 AWG Cable, 24 in Length, 1.06 in Width, 0.13 in Thickness, 3/8 in Mounting Hole, Copper, Tin Plated
Panduit - BS202446EU - Features
- Flat ferrule end design helps to reduce the effects of EMI
- Made of high conductivity copper and tin plated to inhibit corrosion
- Seamless ferrule ends provide mechanical strength for improved reliability
- Available with internationally recognized green and yellow insulation for grounding application
Specifications
Specifications
Panduit - BS202446EU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BS202446EU |
| UNSPSC Code | 39121400 |
| Product Type | Braided Bonding Strap |
| Sub Brand | StructuredGround |
| Insulated | No |
| Material | Copper/Tin |
| Color | Metallic |
| Overall Length (In.) | 24 |
| Overall Length (mm) | 609.6 |
| Overall Width (In.) | 1.06 |
| Overall Width (mm) | 27 |
| Ferrule Length (In.) | 2.5 |
| Ferrule Length (mm) | 36.5 |
| Stud Hole Spacing (In.) | 1.25 |
| Stud Hole Spacing (mm) | 31.8 |
| Stud Hole Size (In.) | 0.375 |
| Stud Hole Size (mm) | 10 |
| Application | Control Panel |
| Standards Met | cULus Listed - 467 for Bonding Applications Only |
| Part Features | Flat seamless ferrule end design helps to reduce the effects of EMI (Electromagnetic Interference) |
| UPC | 07498311613 |
Panduit - BS202446EU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7413.00.5000 |
