Brand: Panduit
|
SKU:
BSN10-L-IE

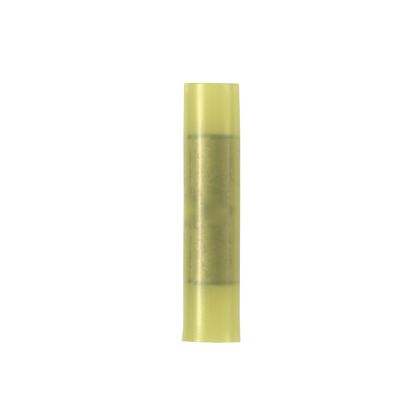

Panduit BSN10-L | Pan-Term BSN10-L Butt Splice, Yellow, Nylon, 10-12 AWG, PK50
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSN10-L | Pan-Term BSN10-L Butt Splice, Yellow, Nylon, 10-1...
Regular price
$3.03
Unit price
Description
Description
Panduit BSN10-L | Pan-Term BSN10-L Butt Splice, Yellow, Nylon, 10-12 AWG, PK50
Panduit BSN10-L Nylon Insulated Butt Splice
Specifications
Specifications
Panduit - BSN10-L - Product Categories
- Wire Termination
- Splices
Panduit - BSN10-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSN10-L |
| Item Description | Pan-Term BSN10-L Butt Splice, Yellow, Nylon, 10-12 AWG, PK50 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #12 - #10 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | BSN10-L |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (In.) | 1.14 |
| Overall Length (mm) | 29 |
| Overall Width (In.) | 0.27 |
| Overall Width (mm) | 6.8 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Designed to splice two solid or stranded wires together to repair or lengthen wires • Butted configuration provides low profile for limited space applications • Internal wire stop assures proper length of insertion into terminal barrel |
Brand Name - BSN10-L - Package Information
| UPC | 07498383004 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0062 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0617 |
