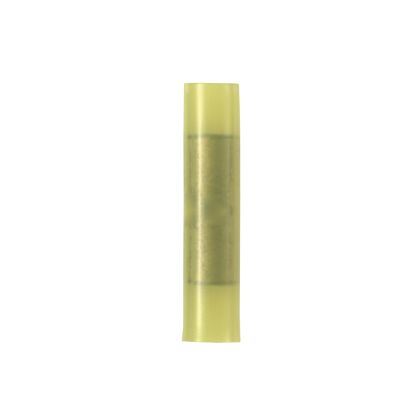

Panduit BSN10-L | Pan-Term Butt Splice, Yellow, Nylon, 10-12 AWG, PK50
Description
Description
Our nylon-insulated butt splice creates secure, low-profile wire connections for quick repairs and extensions in tight spaces.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSN, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1.14 in Length, Brazed Seam/Standard Barrel, 0.21 in ID x 0.27 in OD Barrel, 600 VAC, 9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation, 221 deg F, Copper, Yellow, TiN Coated
Panduit - BSN10-L - Features
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
Specifications
Specifications
Panduit - BSN10-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSN10-L |
| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 12-10 |
| Copper Code Conductor Size (AWG) | 12-10 |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Minimum Copper Conductor Size (AWG SOL) | 12 |
| Minimum Copper Conductor Size (AWG STR) | 12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Insulation Material | Nylon |
| Overall Length (In.) | 1.14 |
| Overall Length (mm) | 29 |
| Overall Width (In.) | 0.27 |
| Overall Width (mm) | 6.8 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 150 |
| UPC | 07498383004 |
Panduit - BSN10-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - BSN10-L - Videos
| Panduit BSN10-L Video 1 | Click to View |
|---|
