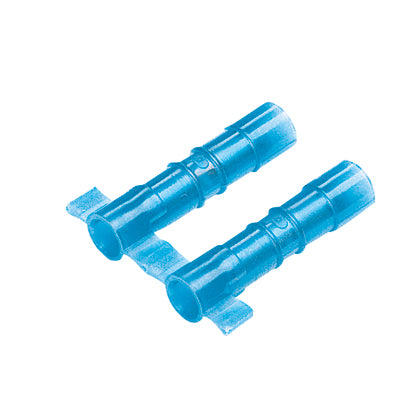

Panduit BSN14-3K | Butt Splice | UPC - 07498383017
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Reel Smart Butt Splice, Series: BSN, Solid/Stranded Conductor, 18 to 14 AWG Conductor, 0.95 in Length, Brazed Seam/Standard Barrel, 0.24 in OD Barrel, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Maximum Standard Nylon Insulation, 221 deg F, Copper, Blue, TiN Coated
Features + Benefits
- Tin plated to inhibit corrosion
- Internally beveled wire entry for fast and easy installation
- Product information marked on connector for selection and installation
Panduit BSN14-3K | Butt Splice | UPC - 07498383017 Key Specs
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #18 - #14 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | C22.2 No 65, UL 486C |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 0.95 |
| Overall Length (mm) | 24.1 |
| Overall Width (In.) | 0.24 |
Panduit BSN14-3K | Butt Splice | UPC - 07498383017 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-P47B-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Videos | Reel Smart: Loading Terminals Video 16:9 BSN14-3K | Download and View |
Panduit BSN14-3K | Butt Splice | UPC - 07498383017 Environmental Information
| Panduit's RoHS Statement | Download and View |
