Brand: Panduit
|
SKU:
BSN14-C-IE

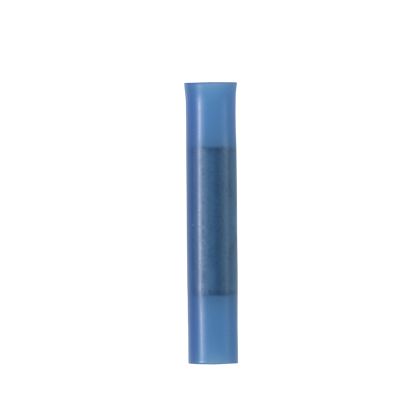

Panduit BSN14-C | Pan-Term BSN14-C Butt Splice, Blue, Nylon, 14-16 AWG, PK100
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSN14-C | Pan-Term BSN14-C Butt Splice, Blue, Nylon, 14-16 ...
Regular price
$1.47
Unit price
Description
Description
Panduit BSN14-C | Pan-Term BSN14-C Butt Splice, Blue, Nylon, 14-16 AWG, PK100
Panduit BSN14-C Nylon Insulated Butt Splice
Specifications
Specifications
Panduit - BSN14-C - Product Categories
- Wire Termination
- Splices
Panduit - BSN14-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSN14-C |
| Item Description | Pan-Term BSN14-C Butt Splice, Blue, Nylon, 14-16 AWG, PK100 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #14 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | BSN14-C |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Designed to splice two solid or stranded wires together to repair or lengthen wires • Butted configuration provides low profile for limited space applications • Internal wire stop assures proper length of insertion into terminal barrel |
Brand Name - BSN14-C - Package Information
| UPC | 07498383002 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0099 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0985 |
Brand Name - BSN14-C - Videos
| Video URL 1 | Click to View |
|---|
