Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

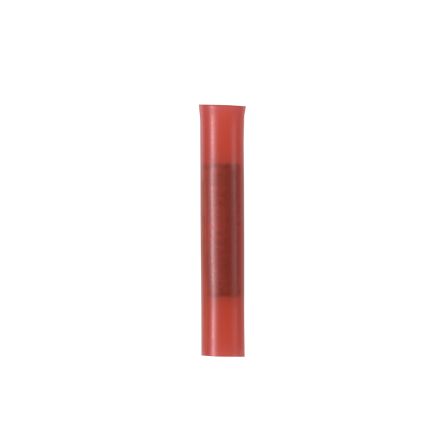

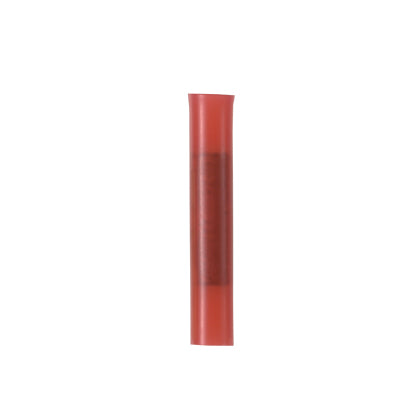

Panduit Pan-Term Butt Splice, Loose Piece, Series: BSN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.15 in Length, Brazed Seam/Standard Barrel, 0.13 in ID x 0.2 in OD Barrel, 600 VAC, 9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation, 221 deg F, Copper, Red, TiN Coated
Features + Benefits
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
Panduit BSN18-M | Butt Splice | UPC - 07498383001 Key Specs
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #22 - #18 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | C22.2 No 65, UL 486C |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width (In.) | 0.2 |
