Brand: Panduit
|
SKU:
PAN-BSN18-M

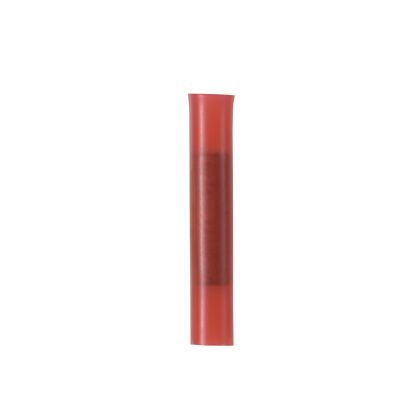

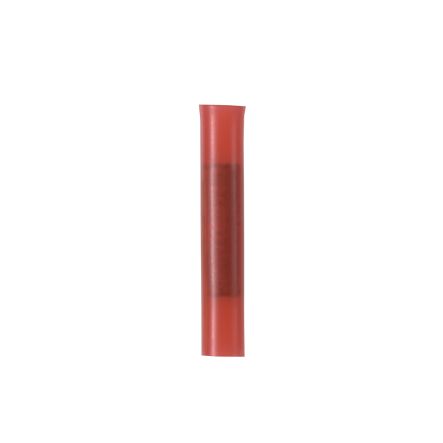

Panduit BSN18-M | Pan-Term BSN18-M Butt Splice, Red, Nylon, 18-22 AWG, PK1000
Regular price
$431.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSN18-M | Pan-Term BSN18-M Butt Splice, Red, Nylon, 18-22 A...
Regular price
$431.03
Unit price
Description
Description
Panduit BSN18-M | Pan-Term BSN18-M Butt Splice, Red, Nylon, 18-22 AWG, PK1000
Panduit BSN18-M Nylon Insulated Butt Splice
Panduit BSN18-M - TERMINAL-SPLICE - BUTT SPLICE 22-18AWG NYLON
Specifications
Specifications
Panduit - BSN18-M - Product Categories
- Wire Termination
- Splices
Panduit - BSN18-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSN18-M |
| Item Description | Pan-Term BSN18-M Butt Splice, Red, Nylon, 18-22 AWG, PK1000 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #22 - #18 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | BSN18-M |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Designed to splice two solid or stranded wires together to repair or lengthen wires • Butted configuration provides low profile for limited space applications • Internal wire stop assures proper length of insertion into terminal barrel |
Panduit - BSN18-M - Package Information
| UPC | 07498383001 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.5261 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - BSN18-M - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
