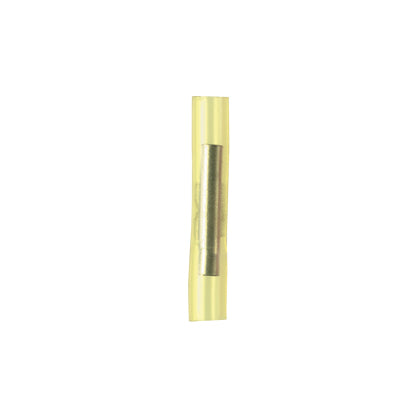

Panduit BSN22-M | Butt Splice | UPC - 07498383015
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSN, Solid/Stranded Conductor, 26 to 22 AWG Conductor, 0.79 in Length, Brazed Seam/Standard Barrel, 0.04 in ID x 0.08 in OD Barrel, 600 VAC, 1/4 in L Wire Strip, 0.08 in Dia Maximum Nylon Insulation, 221 deg F, Copper, Yellow, TiN Coated
Features + Benefits
- Tin plated to inhibit corrosion
- Internally beveled wire entry for fast and easy installation
- Product information marked on connector for selection and installation
Panduit BSN22-M | Butt Splice | UPC - 07498383015 Key Specs
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #22 |
| Maximum Copper Conductor Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #26 |
| Minimum Copper Conductor Size (AWG STR) | #26 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Metric Conductor Size (mm²) | 0.1 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #26 - #22 |
| Barrel Type | Brazed Seam |
Panduit BSN22-M | Butt Splice | UPC - 07498383015 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Butt Splice, Nylon Insulated #26-22 AWG | Download and View |
Panduit BSN22-M | Butt Splice | UPC - 07498383015 Environmental Information
| Panduit's RoHS Statement | Download and View |
