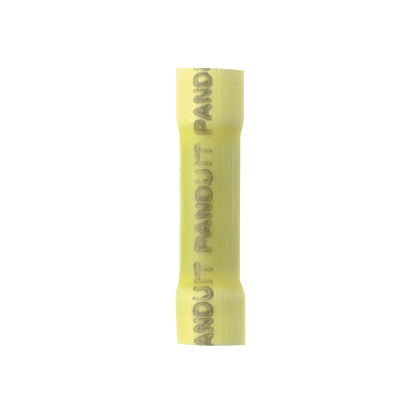

Panduit BSV10X-Q | Butt Splice | UPC - 07498352161
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSV, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1.18 in Length, Brazed Seam/Expanded Barrel, 600 VAC, 5/16 in L Wire Strip, 1/4 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Yellow, TiN Coated
Features + Benefits
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
Panduit BSV10X-Q | Butt Splice | UPC - 07498352161 Key Specs
| Note | BSV10X-Q replaces BSV10X-L |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #12 - #10 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Standards Met | C22.2 No 65, UL 486C |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (In.) | 1.18 |
| Overall Length (mm) | 30 |
Panduit BSV10X-Q | Butt Splice | UPC - 07498352161 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - BSN22-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41181-08BSV_X | Download and View |
| Selection Guides | Loose Piece Terminals and Ferrules: TMSG08--SA-ENG | Download and View |
Panduit BSV10X-Q | Butt Splice | UPC - 07498352161 Environmental Information
| Panduit's RoHS Statement | Download and View |
