Brand: Panduit
|
SKU:
DRC-020279

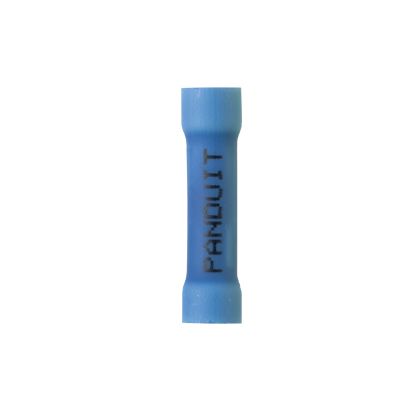

Panduit BSV14X-L | Pan-Term BSV14X-L Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Regular price
$37.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSV14X-L | Pan-Term BSV14X-L Butt Splice, Blue, Vinyl, 14-1...
Regular price
$37.89
Unit price
Description
Description
Panduit BSV14X-L | Pan-Term BSV14X-L Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Panduit BSV14X-L Vinyl Insulated Butt Splice
Specifications
Specifications
Panduit - BSV14X-L - Product Categories
- Wire Termination
- Splices
Panduit - BSV14X-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSV14X-L |
| Item Description | Pan-Term BSV14X-L Butt Splice, Blue, Vinyl, 14-16 AWG, PK50 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #14 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Standards Met | BSV14X-L |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Designed to splice two solid or stranded wires together to repair or lengthen wires • Internal wire stop assures proper length of insertion into terminal barrel |
Brand Name - BSV14X-L - Package Information
| UPC | 07498352162 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0064 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0641 |
Brand Name - BSV14X-L - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
