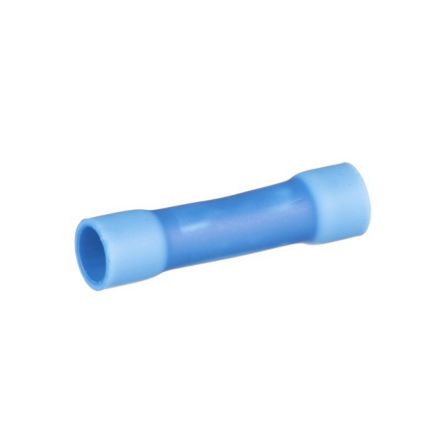

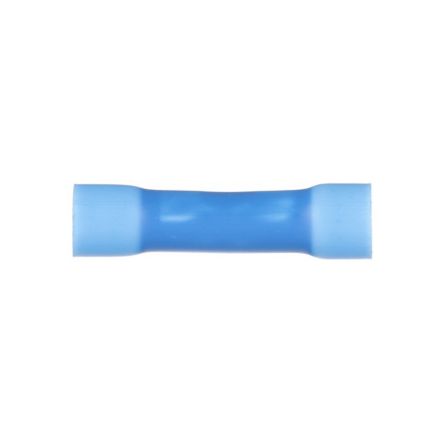

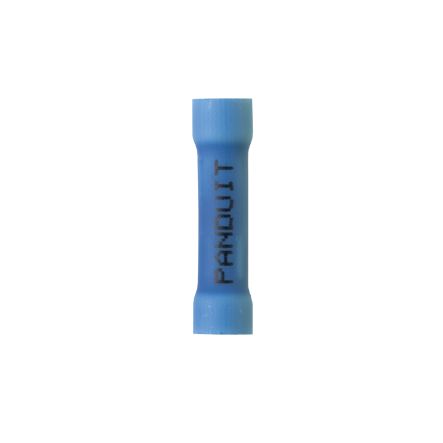

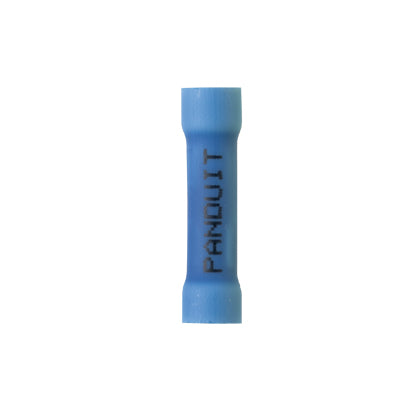

Panduit BSV14X-L | Pan-Term Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Description
Description
Our vinyl butt splice streamlines your wire repairs and extensions for various wire gauges, ensuring secure connections in a single, efficient step.
The BSV14X-L Pan-Term Splice is a vinyl insulated butt splice. Internal wire stop assures proper insertion length for a quality connection. Brazed seem protects the terminal barrel from splitting during the crimp process. Expanded wire entry accomodate s wires with larger insulation thickness.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSV, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1.04 in Length, Brazed Seam/Expanded Barrel, 600 VAC, 5/16 in L Wire Strip, 0.2 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Blue, TiN Coated
Panduit - BSV14X-L - Features
- Manufactured from one piece tin-plated seamless copper tubing with an integral barrel/insulation grip - provides maximum tensile strength, plus excellent cable support and strain relief and eliminates failures due to vibration
- Smooth funnel entry provides easy wire insertion
- Window position locator for full cycle ratchet tool crimp provides proper tool/connector alignment for correct crimp
- Nylon insulation offers high dielectric strength and stability in oily environmental conditions - Maintains a high quality connection in demanding applications
- The nylon is locked into position the connector will not move
- Installation tool - Y10D
- Ratchet- MR8-33S-1 tool
Specifications
Specifications
Panduit - BSV14X-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSV14X-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 16-14 |
| Copper Code Conductor Size (AWG) | 16-14 |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| UPC | 07498352162 |
Panduit - BSV14X-L - Videos
| Panduit BSV14X-L Video 1 | Click to View |
|---|---|
| Panduit BSV14X-L Video 2 | Click to View |
