Brand: Panduit
|
SKU:
RAW-250995

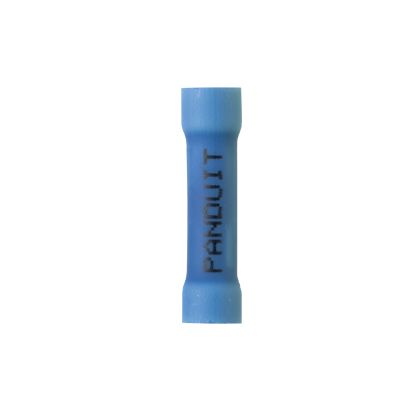

Panduit BSV14X-L | Pan-Term Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Regular price
$1.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSV14X-L | Pan-Term Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Regular price
$1.72
Unit price
Description
Description
Panduit BSV14X-L | Pan-Term Butt Splice, Blue, Vinyl, 14-16 AWG, PK50
Our vinyl butt splice streamlines your wire repairs and extensions for various wire gauges, ensuring secure connections in a single, efficient step.
Specifications
Specifications
Panduit - BSV14X-L - Specifications
| Product Type | Butt Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 16-14 |
| Copper Code Conductor Size (AWG) | 16-14 |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
Panduit - BSV14X-L - Package Includes
| UPC | 07498352162 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0064 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0641 |
Panduit - BSV14X-L - Videos
| Panduit BSV14X-L Video | Click to View |
|---|
