Brand: Panduit
|
SKU:
PAN-BSV14X-M-EA
Panduit BSV14X-M | Pan-Term Bsv14X-M Butt Splice, Blue, Vinyl, 14-16 Awg, Pk1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BSV14X-M | Pan-Term Bsv14X-M Butt Splice, Blue, Vinyl, 14-1...
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-BSV14X-M-EA
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit BSV14X-M | Pan-Term Bsv14X-M Butt Splice, Blue, Vinyl, 14-16 Awg, Pk1000

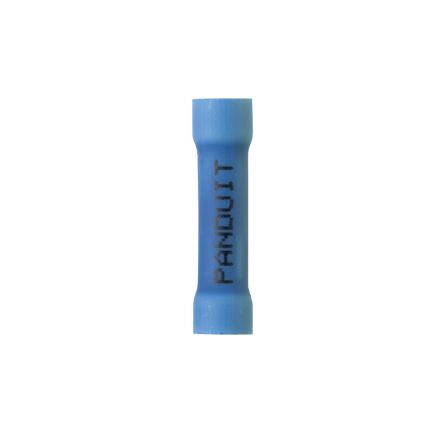

Panduit BSV14X-M Vinyl Insulated Butt Splice
Panduit - BSV14X-M - Features
- Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
- Panduit Pan-Term Butt Splice, Loose Piece, Series: BSV, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1.04 in Length, Brazed Seam/Expanded Barrel, 600 VAC, 5/16 in L Wire Strip, 0.2 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Blue, TiN Coated
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
Specifications
Specifications
Panduit - BSV14X-M - Product Categories
- Wire Termination
- Splices
Panduit - BSV14X-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSV14X-M |
| Item Description | Pan-Term Bsv14X-M Butt Splice, Blue, Vinyl, 14-16 Awg, Pk1000 |
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #14 |
| Barrel Type | Funnel Entry |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Standards Met | BSV14X-M |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Designed to splice two solid or stranded wires together to repair or lengthen wires • Internal wire stop assures proper length of insertion into terminal barrel |
| MPN: | BSV14X-M |
| Barrel Type: | Brazed Seam/Expanded |
| Color: | Blue |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | TiN Coated |
| Length: | 1.04 in |
| Material: | Copper |
| Series: | BSV |
| Specifications: | 5/16 in L Wire Strip, 0.2 in Dia Maximum Vinyl Insulation |
| Temperature Rating: | 221 deg F |
| Type: | Loose Piece |
| Voltage Rating: | 600 VAC |
Panduit - BSV14X-M - Package Information
| UPC | 07498383103 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.7402 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - BSV14X-M - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
