Panduit BSV14X-M | Pan-Term Butt Splice, Blue, Vinyl, 14-16 AWG, PK...
Description
Description
Our vinyl butt splice streamlines your wire repairs and extensions for various wire gauges, ensuring secure connections in a single, efficient step.

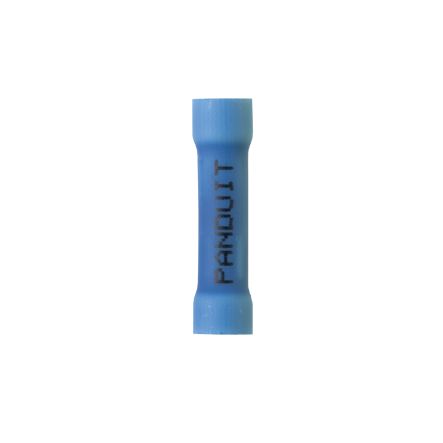

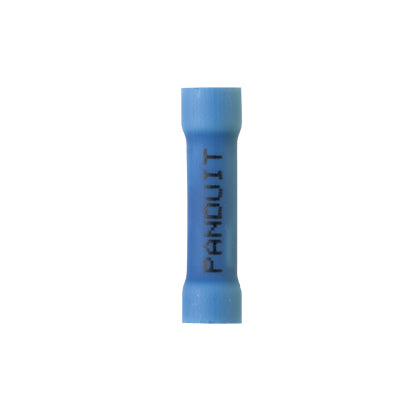

The BSV14X-M Pan-Term Splice is a vinyl insulated butt splice. Internal wire stop assures proper insertion length for a quality connection. Brazed seem protects the terminal barrel from splitting during the crimp process. Expanded wire entry accomodate s wires with larger insulation thickness.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSV, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1.04 in Length, Brazed Seam/Expanded Barrel, 600 VAC, 5/16 in L Wire Strip, 0.2 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Blue, TiN Coated
Panduit - BSV14X-M - Features
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installation
- Internally beveled wire entry for fast and easy installation
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal wire stop assures proper length of insertion into terminal barrel
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - BSV14X-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSV14X-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 16-14 |
| Copper Code Conductor Size (AWG) | 16-14 |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 16 |
| Minimum Copper Conductor Size (AWG STR) | 16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Insulation Material | Vinyl |
| Overall Length (In.) | 1.04 |
| Overall Length (mm) | 26.4 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| UPC | 07498383103 |
