Brand: Panduit
|
SKU:
PAN-BT1.5I-CO
Panduit BT1.5I-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 6.1"L, 40lb, PK100
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT1.5I-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 6.1"L,...
Regular price
$23.72
Unit price
Brand: Panduit
|
SKU:
PAN-BT1.5I-CO
Regular price
$23.72
Unit price
Shipping calculated at checkout.
Description
Description

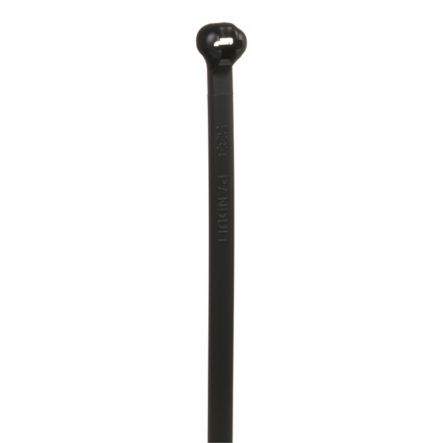

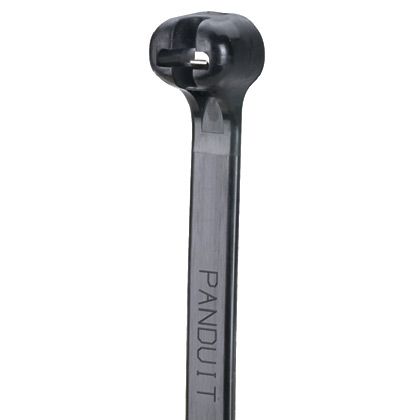

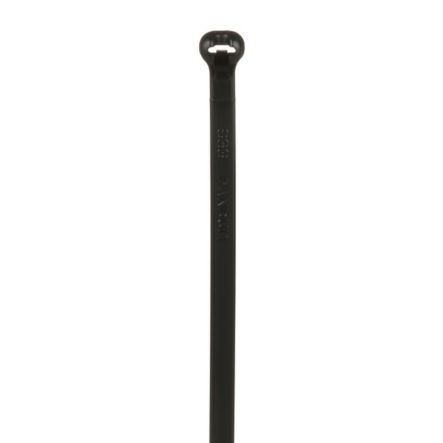

Panduit BT1.5I-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 6.1"L, 40lb, PK100
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.
Panduit Dome-Top Barb-Ty Cable Tie, Intermediate Cross Section, Series: BT Series, 6.1 in Length, 0.14 in Width, 0.04 in Thickness, 1-1/2 in Diameter Bundle, Lock Mechanism: Locking, 40 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Black
Panduit - BT1.5I-C0 - Features

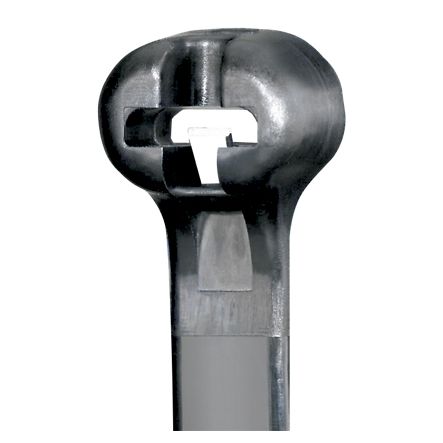

- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- Weather resistant nylon 6.6
Specifications
Specifications
Panduit - BT1.5I-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT1.5I-C0 |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 6.1 |
| Overall Length (mm) | 155 |
| Body Width (In.) | 0.142 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.041 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498341334 |
Panduit - BT1.5I-C0 - Videos
| Panduit BT1.5I-C0 Video 1 | Click to View |
|---|
