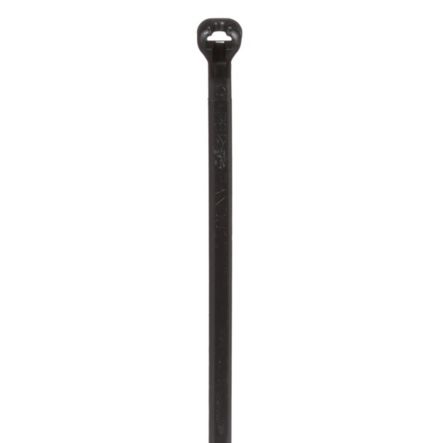

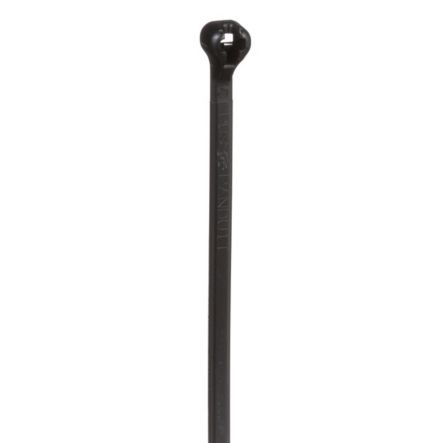

Panduit BT1.5M-M0 | Dome-Top Barb Tie, Black, UV PA6.6, 6.3"L,...
Description
Description
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.
The BT1.5M-M0 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bund le range. Miniature cross section, 6.3’ (160mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range. High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity. This comprehensive product line offers several styles, materials and colors for a broad range of applications that require high strength and superior performance.
Panduit Dome-Top Cable Tie, Miniature Cross Section, 6.3 in Length, 0.18 in W, 0.05 in Thickness, 1-1/2 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Black
Panduit - BT1.5M-M0 - Features
- One piece locking wedge provides consistent, reliable performance
- Aggressive grips allow temporary threading of tie before the strap teeth are engaged
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Dome shaped head and smooth, round strap body protect the cable insulation
- Strong locking wedge improves strength and allows for rough handling
- Thin, flared neck tolerates rough installation practices and improves small bundle performance
- Thin, wide strap body provides increased flexibility while maintaining loop tensile strength
- Designed to grip the bundle tightly to resist lateral movement of the tie once installed
- High strength allows the tie to withstand rough installation practices that occur in MRO and construction environments
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use

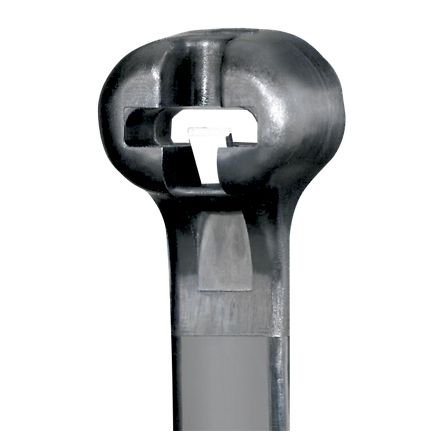

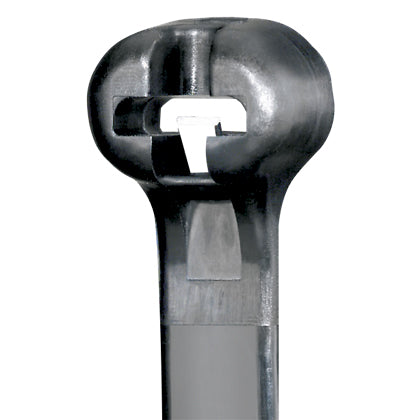

- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT1.5M-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT1.5M-M0 |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 6.3 |
| Overall Length (mm) | 160 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.046 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498360292 |
Panduit - BT1.5M-M0 - Videos
| Panduit BT1.5M-M0 Video 1 | Click to View |
|---|
