Panduit BT1M-C0 | Cable Ties
Description
Description
The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range. high loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity. this comprehensive product line offers several styles, materials and colors for a broad range of applications that require high strength and superior performance.
Panduit Dome-Top Miniature Cable Tie, Cross Section, 4 in Length, 0.1 in Width, 0.04 in Thickness, 0.9 in Bundle Dia, Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Black
Panduit - BT1M-C0 - Features
- Greater resistance to damage caused by ultraviolet light indoor or outdoor use

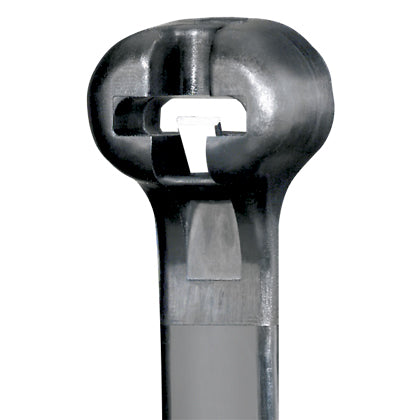

- Dome-Top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - BT1M-C0 - Specifications
| Product Type | Cable Ties |
|---|---|
| Color | Black |
| Environment | Indoor/Outdoor |
| Sub Brand | Dome-Top |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 23 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498341303 |
