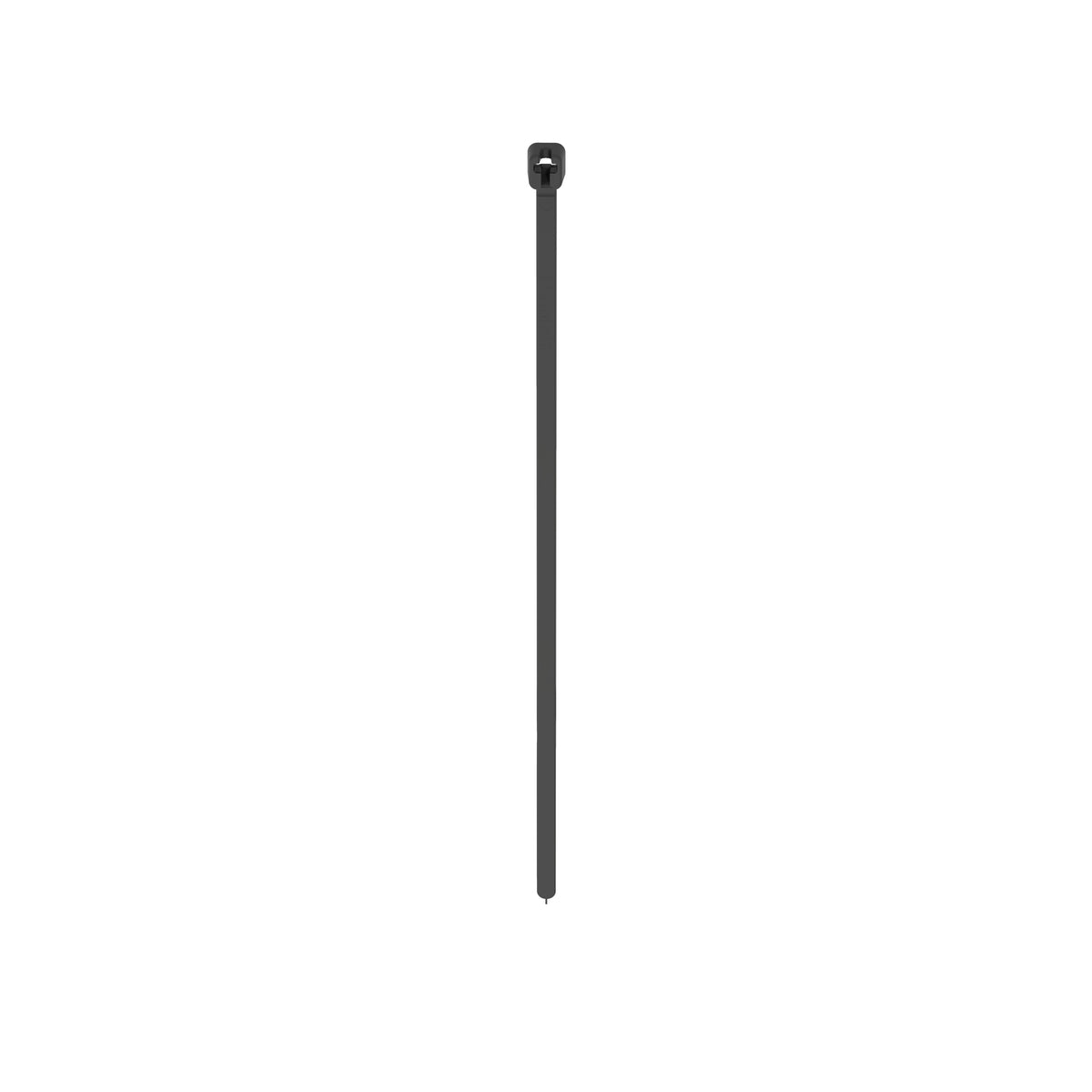

Panduit BT1M-XMR30 | Reel-Fed Cable Tie | UPC - 07498339061

Panduit BT1M-XMR30 continuously molded barbed cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Exclusive stainless steel locking barb with high loop tensile strength provides higher reliability for demanding applications. Miniature cross section, 4” (102mm) cable ties for use with PAT1M4.0-BT Tool. Made of Heat Stabilized Nylon 6.6, are black in color and come 5,000 ties per reel.

---

Panduit Panduit BT1M-XMR30 | Reel-Fed Cable Tie | UPC - 07498339061 Key Specs

Application	Reel-fed cable ties for automated tooling
Product Type	Reel-Fed Cable Tie
Color	Black
Sub Brand	Dome-Top
Environment	Indoor
For Use With	PAT1M4.0-BT System
Material	Heat Stabilized Nylon 6.6
Maximum Bundle Diameter (In.)	0.82
Maximum Bundle Diameter (mm)	20.8
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Bundle Diameter (In.)	0
Minimum Bundle Diameter (mm)	0
Minimum Loop Tensile Strength (N)	133
Minimum Loop Tensile Strength (lb)	30
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	4
Overall Length (mm)	102
Body Width (In.)	0.1
