Brand: Panduit
|
SKU:
190595

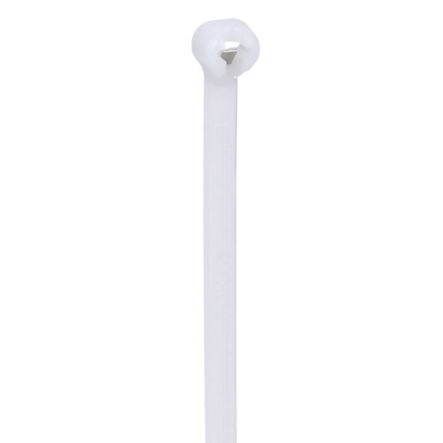

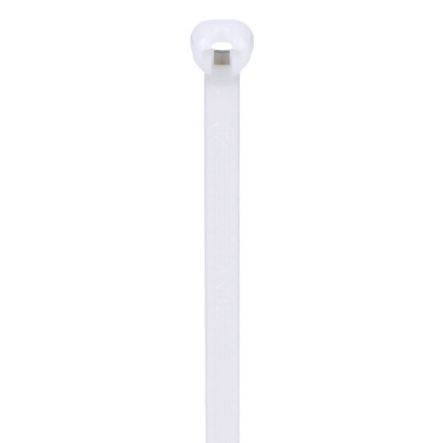

Panduit BT2I-M Cable Tie, Metal Barb, 8.0";L (203mm), Intermediate, Nylon, Natural, Pack of 1000
Regular price
$96.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT2I-M Cable Tie, Metal Barb, 8.0";L (203mm), Intermed...
Regular price
$96.61
Unit price
Description
Description
Panduit BT2I-M | Dome-Top BT2I-M Barb Tie, PA6.6, 8"L, 40lb, PK1000

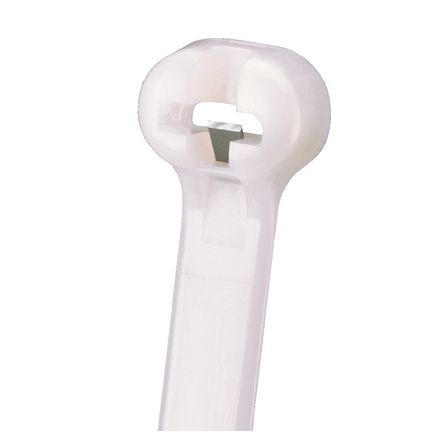

The BT2I-M Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Intermediate cross section, 8.0" (203mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - BT2I-M - Features
- For indoor use
- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT2I-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT2I-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT2I-M |
| Item Description | Dome-Top BT2I-M Barb Tie, PA6.6, 8"L, 40lb, PK1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.141 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.041 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - BT2I-M - Package Information
| UPC | 07498341362 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1257 |
| Standard. Ctn. Quantity | 25000 |
| Standard. Ctn. Volume (cf) | 3.1414 |
