Panduit BT2M-M | Cable Ties
Description
Description
The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range. high loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity. this comprehensive product line offers several styles, materials and colors for a broad range of applications that require high strength and superior performance.

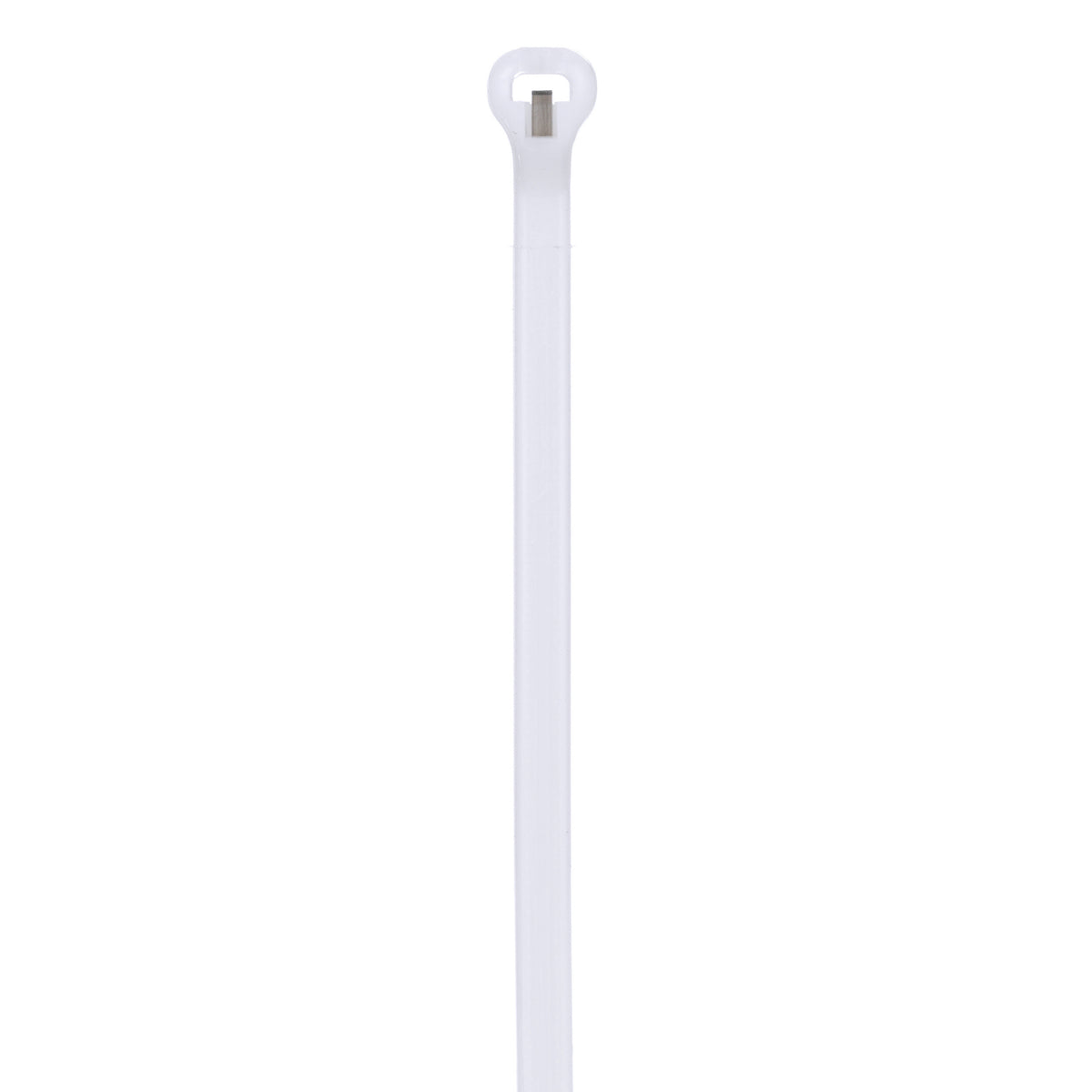

Panduit Dome-Top Miniature Cable Tie, Cross Section Plenum Rated, 7.9 in Length, 0.1 in Width, 0.05 in Thickness, 2 in Bundle Dia, Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Natural
Panduit - BT2M-M - Features
- Dome-Top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - BT2M-M - Specifications
| Product Type | Cable Ties |
|---|---|
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Dome-Top |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498360288 |
