Panduit BT2S-C | Dome-Top Barb Tie, PA6.6, 8"L, 50lb, PK100
Description
Description
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.

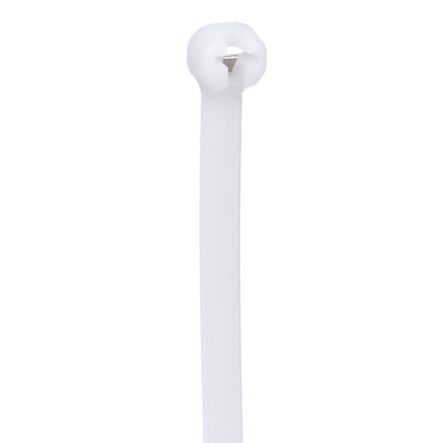

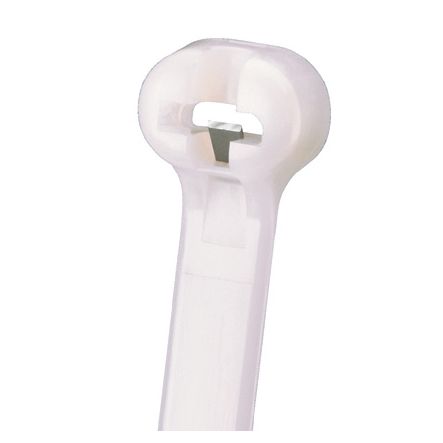

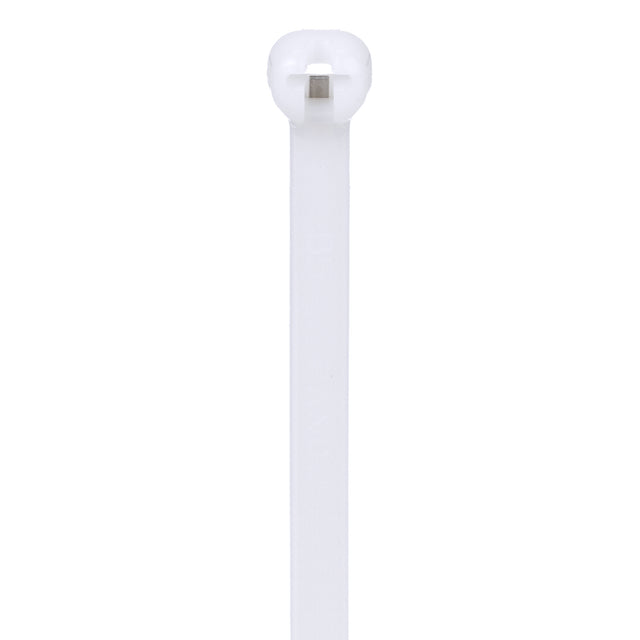

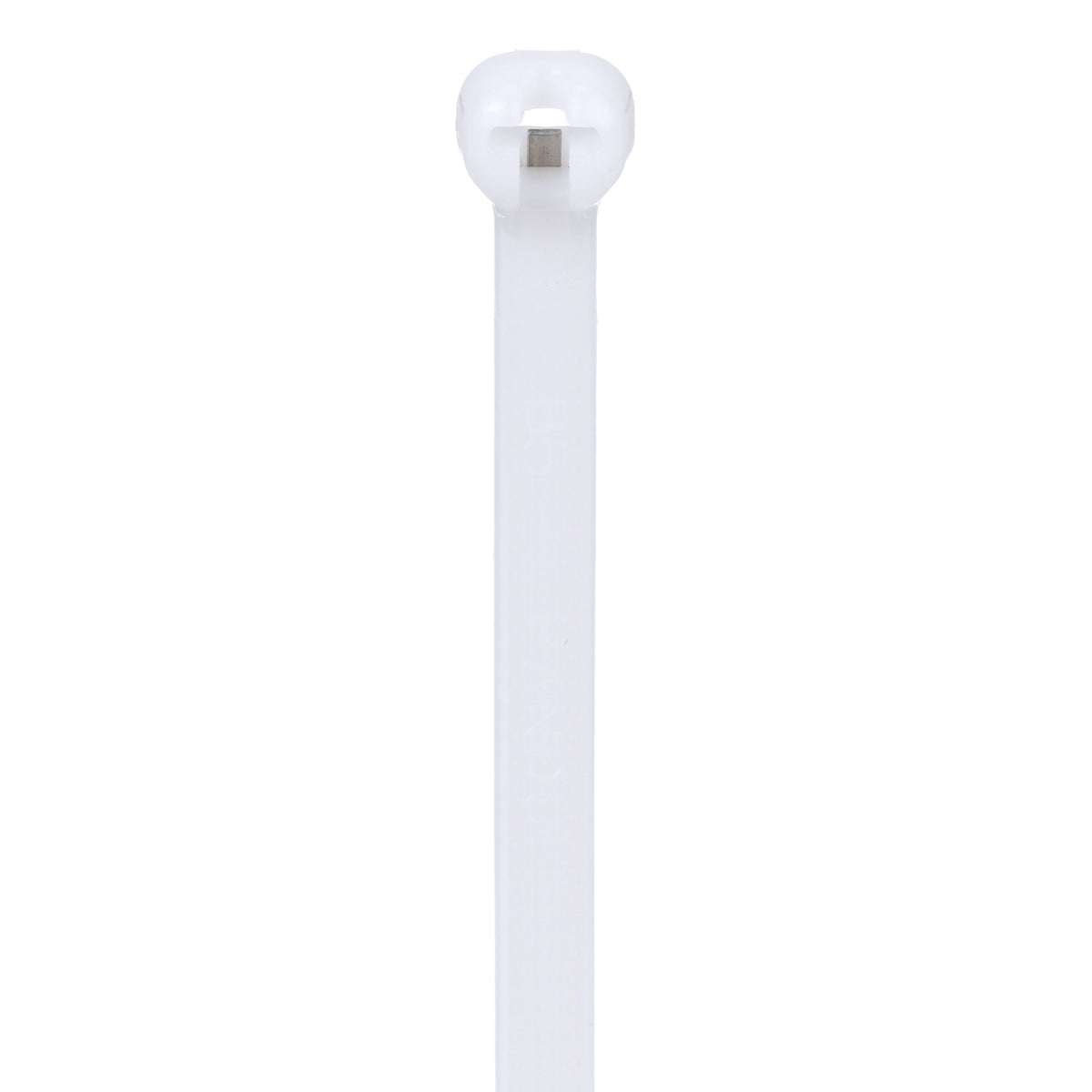

The BT2S-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.0’ (203mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit Dome-Top Barb-Ty Cable Tie, Plenum Standard, Series: BT Series, 8 in Length, 0.19 in Width, 0.05 in Thickness, 2 in Bundle Dia, Lock Mechanism: Self Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - BT2S-C - Features
- 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For indoor use
- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÔurved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT2S-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT2S-C |
| Cable Tie Diameter | 8" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498341176 |
