Brand: Panduit
|
SKU:
249920
Panduit BT2S-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 8"L, 50lb, PK100
Regular price
$26.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT2S-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 8"L, 50l...
Regular price
$26.36
Unit price
Description
Description
Panduit BT2S-C0 | Dome-Top Barb Tie, Black, UV PA6.6, 8"L, 50lb, PK100
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.
Panduit Dome-Top Barb-Ty Cable Tie, Plenum Standard, Series: BT Series, 8 in Length, 0.19 in Width, 0.05 in Thickness, 2 in Bundle Dia, Lock Mechanism: Self Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Panduit - BT2S-C0 - Features
- 2-piece design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity

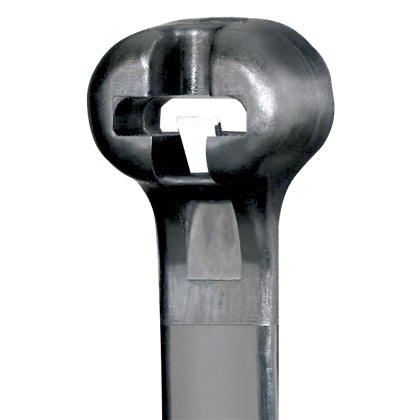

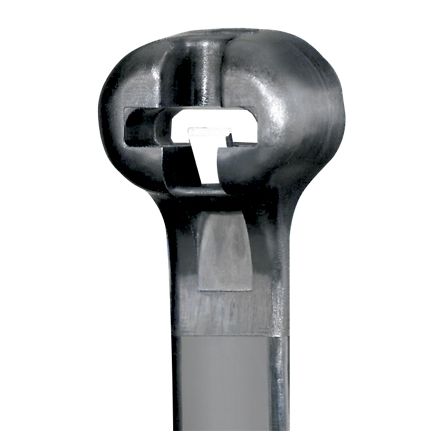

- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by UV light
- UV-resistant
Specifications
Specifications
Panduit - BT2S-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT2S-C0 |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498341177 |
Panduit - BT2S-C0 - Videos
| Panduit BT2S-C0 Video 1 | Click to View |
|---|
