Panduit BT2S-M39 | Dome-Top Bt2S-M39 Barb Tie, High Heat Pa6.6, 8&q...
Description
Description

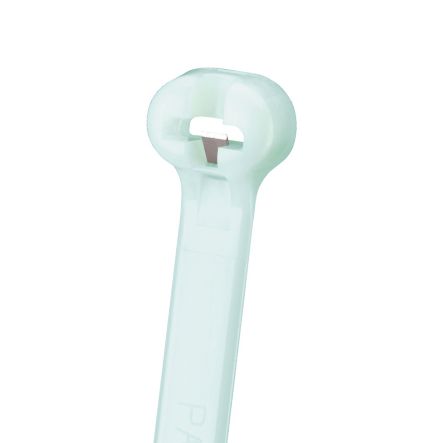

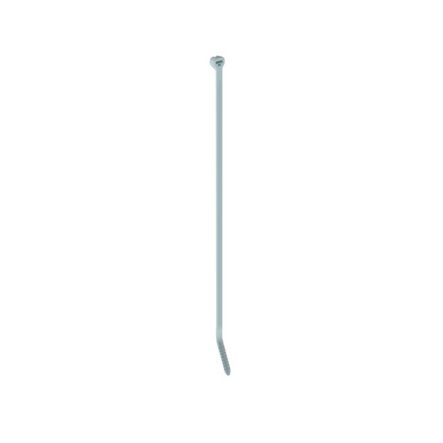

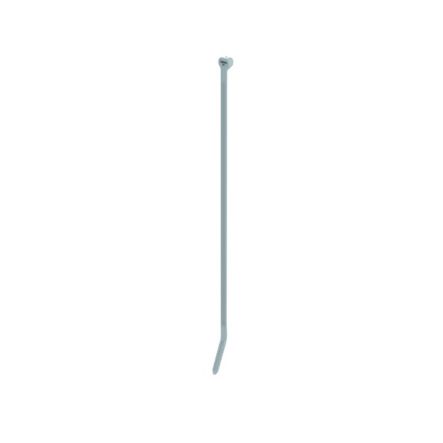

Panduit BT2S-M39 Cable Tie, Metal Barb, 8.0";L (203mm), Standard, 2"; Maximum Bundle Diameter, High Temperature, Heat Stabilized, Natural, Pack of 1000
The BT2S-M39 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.0" (203mm) length. Appropriate for Indoor use, made of Heat Stabilized Nylon 6.6 for high temperature applications, are natural in color and come in packages of 1000.
Specifications
Specifications
Panduit - BT2S-M39 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT2S-M39 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT2S-M39 |
| Item Description | Dome-Top Bt2S-M39 Barb Tie, High Heat Pa6.6, 8"L, 50Lb, Pk1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Military Cross Reference Number | MS3367-1-12 |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
Panduit - BT2S-M39 - Package Information
| UPC | 07498363386 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2003 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.0027 |
